Data sheet
Article number 690209
Wall light
type ..0209
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

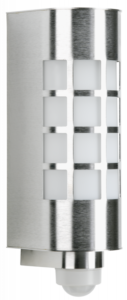

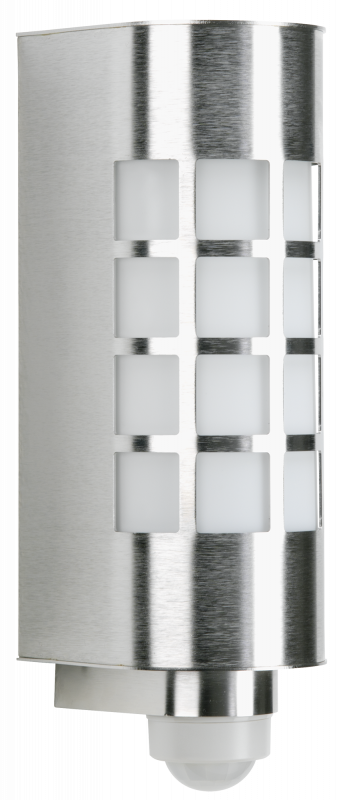

Albert wall light 690209 – with integrated motion detector –
in stainless steel with opal glass, mounting plate in cast aluminium. Suitable for 1 x incandescent lamp A60 75 W, socket E27, protection IP 44 – protection class : 115 x 360 x 130 mm.
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

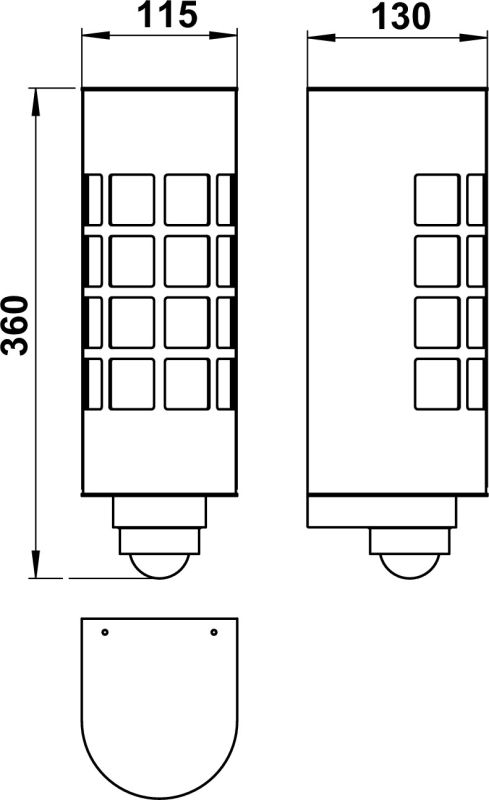

Dimensioned drawing
Instruction manual
Full catalog 21 / 22
Spare parts
| 90210259 - G 259, glass opal matt Thread 84,5 mm -long | show |
Additional information
| Weight | 2,70 kg |
|---|---|
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Suitable for number of lamps | 1 |
| Lamp holder | E27 |
| Light output | Direct |
| Colour housing | Stainless steel |
| Type of control gear | Not required |
| Dimming phase cut-on | Yes |
| Degree of protection (IP) | IP44 |
| Beam angle | Open beam/diffuse |
| Nominal voltage | 230 V |
| Dimming manufacturer's proprietary system | Yes |
| Suitable for surface mounting | Yes |
| Dimming phase cut-off | Yes |
| Material cover | Glass opal |
| Light output | 1-seitig |
| Light type | Wandleuchte |
| With movement sensor | Yes |
| No dim function | Yes |
| Light sharing | Symmetric |
| Material housing | Stainless steel |
| Voltage type | AC |
| Type of wiring | Ending |
| Conductor cross section | 2.5 mm² |
| Mounting Type | Wand |
| Dimming depending on control gear | Yes |
| Coverage | 360 ° |
| Photobiological safety according to EN 62471 | RG1 |
| Protection class | I |
| Unified Glare Ratio (UGR) | 1 |
| Suitable for wall mounting | Yes |
| Max. system power | 75 W |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Width | 115 mm |
| Connection type | Screwed terminal |
| Length | 130 mm |
| Suitable for lamp power | 1 – 75 W |
| Number of poles | 3 |
| With light sensor | Yes |
| Height | < 700 mm |
| Surface protection housing | Untreated |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Power factor | 1 |
| Height/depth | 360 mm |
| Shape | Eckig |
