Article number Select a color, please

Wall light

type ..0215

230,60265,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Dimming manufacturer's proprietary system

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Type of control gear

Not required

Suitable for number of lamps

1

Dimming phase cut-on

Yes

Nominal voltage

230 V

Number of poles

3

Dimming phase cut-off

Yes

Voltage type

AC

Outer diameter

110 mm

Suitable for surface mounting

Yes

Mounting Type

Wand

Light sharing

Symmetric

Power factor

1

Length

180 mm

Height/depth

400 mm

Light output

Direct

Light output

1-seitig

Width

110 mm

Dimming depending on control gear

Yes

No dim function

Yes

Light type

Wandleuchte

Conductor cross section

2.5 mm²

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Protection class

I

Beam angle

Open beam/diffuse

Max. system power

20 W

Connection type

Screwed terminal

Height

< 700 mm

Style

Modern

Surface protection housing

Lacquered

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 31 KB

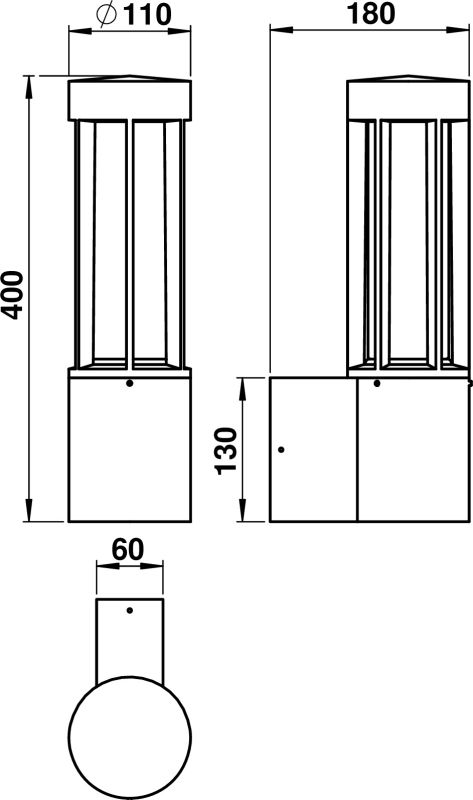

Dimensioned drawing
PDF | 24 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 660215
TXT | 223 B
Offertext
For: 680215
TXT | 223 B
Offertext
For: 690215
TXT | 205 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
661006 - Corner bracket angular type ..1006, Black
Für: 660215
show
681006 - Corner bracket angular type ..1006, White
Für: 680215
show
691006 - Corner bracket angular type ..1006, Stainless steel
Für: 690215
show
90750309 - LED Retrofit Tube show
