Article number Select a color, please

Path light

type ..2005

275,30314,90

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Max. system power

75 W

Nominal voltage

230 V

Voltage type

AC

Highest energy efficiency class of the exchangeable lamp

A++

Surface protection

Lacquered

Type of wiring

Suitable for through wiring

Lowest energy efficiency class of the exchangeable lamp

E

Height/depth

1200 mm

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Suitable for number of lamps

1

With base plate

Yes

Type of control gear

Not required

Diameter

270 mm

Light output

Direct/indirect

Protection class

I

Degree of protection (IP)

IP44

Height

1001 – 1700 mm

Style

Edelstahl, Modern

Width

150 mm

Light sharing

Symmetric

Type of luminaire

Bollard luminaire

Beam angle

Open beam/diffuse

Power factor

1

Light output

2-seitig

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 24 KB

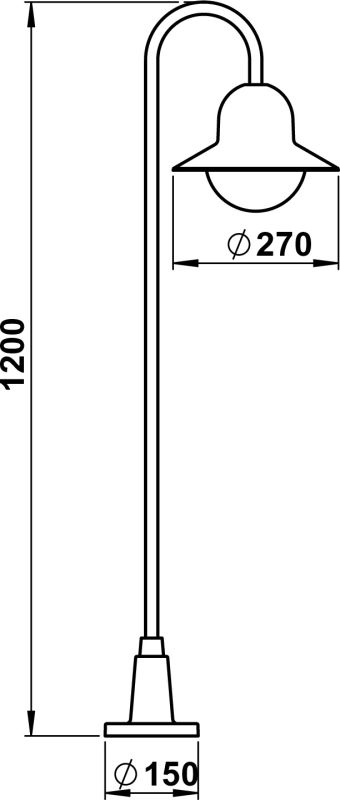

Dimensioned drawing
PDF | 106 KB
Light distribution curve - Eulumdat/LDT
LDT | 1 KB
Offertext
For: 662005
TXT | 293 B
Offertext
For: 682005
TXT | 293 B
Offertext
For: 692005
TXT | 266 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210094 - G 94, glass opal matt show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
