Data sheet
Article number
Select a color, please
Wall light
type ..0215
€230,60 – €265,30
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Documents and files
Assembly instruction

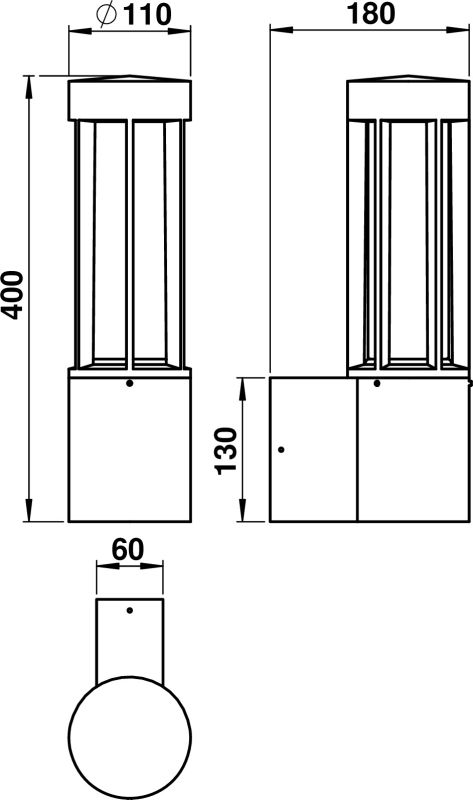

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 660215
Offertext
For: 680215
Offertext
For: 690215
Full catalog 21 / 22
Spare parts
| 90210309 - G 309, opal glass glossy Thread 67 mm | show |
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Suitable for lamp power | 1 – 20 W |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Dimming manufacturer's proprietary system | Yes |
| Lamp type | LED exchangeable |
| Dimming phase cut-on | Yes |
| Nominal voltage | 230 V |
| Height/depth | 400 mm |
| Number of poles | 3 |
| Type of wiring | Ending |
| Outer diameter | 110 mm |
| Lamp holder | E27 |
| Material housing | Aluminium |
| Colour housing | Black, Silver, White |
| Material cover | Glass opal |
| Voltage type | AC |
| Dimming phase cut-off | Yes |
| Suitable for number of lamps | 1 |
| Type of control gear | Not required |
| Suitable for surface mounting | Yes |
| Mounting Type | Wand |
| Light sharing | Symmetric |
| Power factor | 1 |
| Length | 180 mm |
| Connection type | Screwed terminal |
| Beam angle | Open beam/diffuse |
| Surface protection housing | Lacquered |
| Width | 110 mm |
| Dimming depending on control gear | Yes |
| No dim function | Yes |
| Light type | Wandleuchte |
| Light output | Direct |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP44 |
| Protection class | I |
| Style | Modern |
| Height | < 700 mm |
| Light output | 1-seitig |
| Max. system power | 20 W |
| Conductor cross section | 2.5 mm² |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Shape | Eckig |
