Data sheet

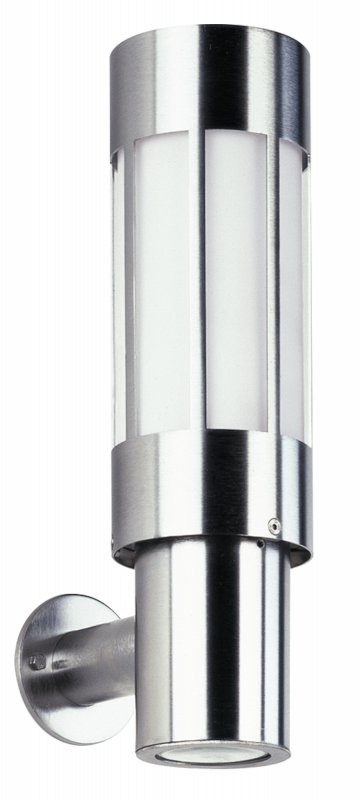

Wall light Stainless steel Product Image Article 690243

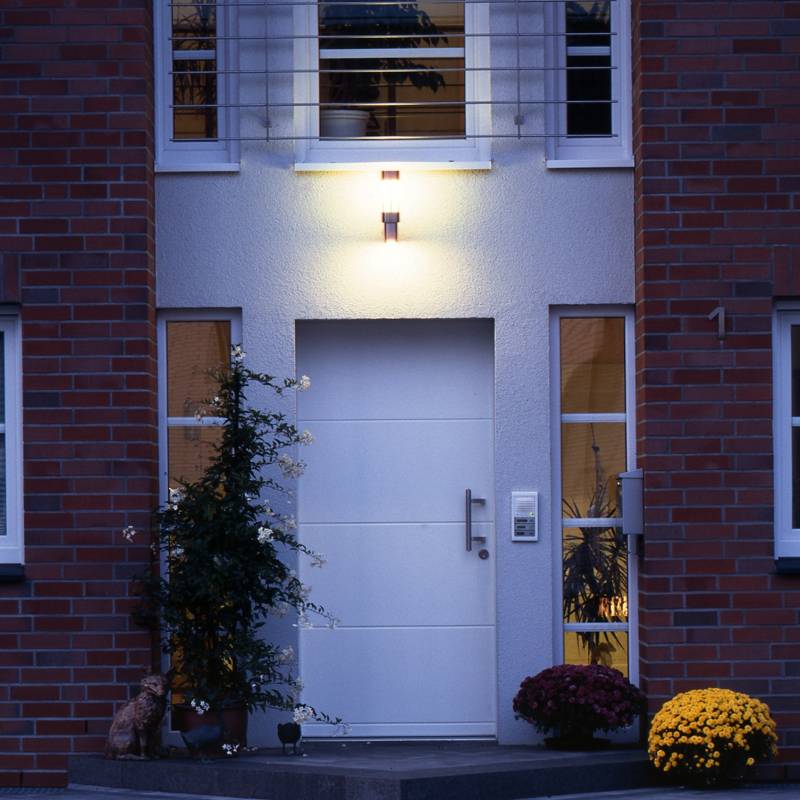

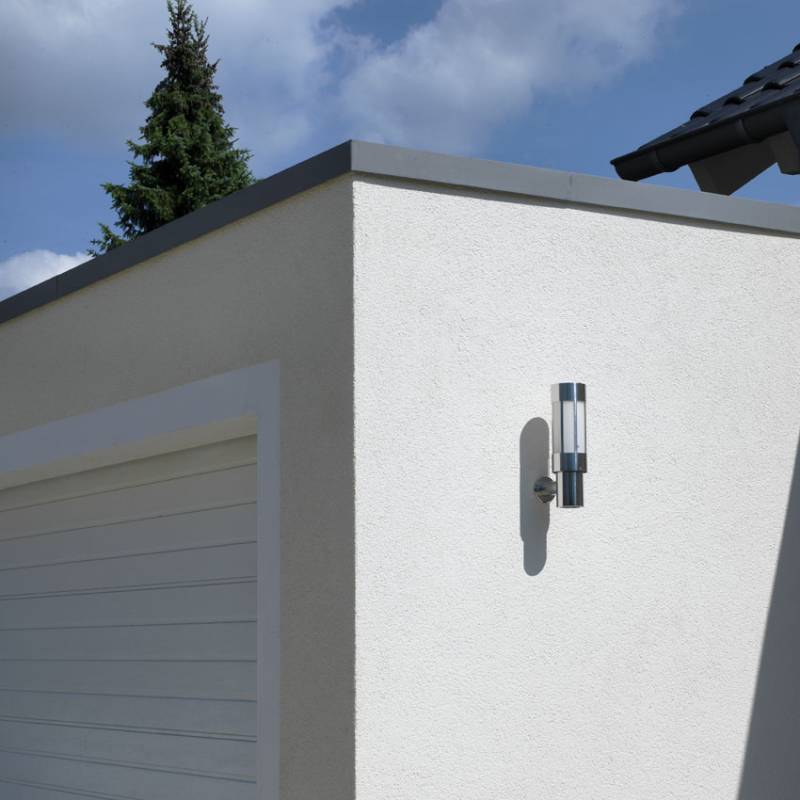

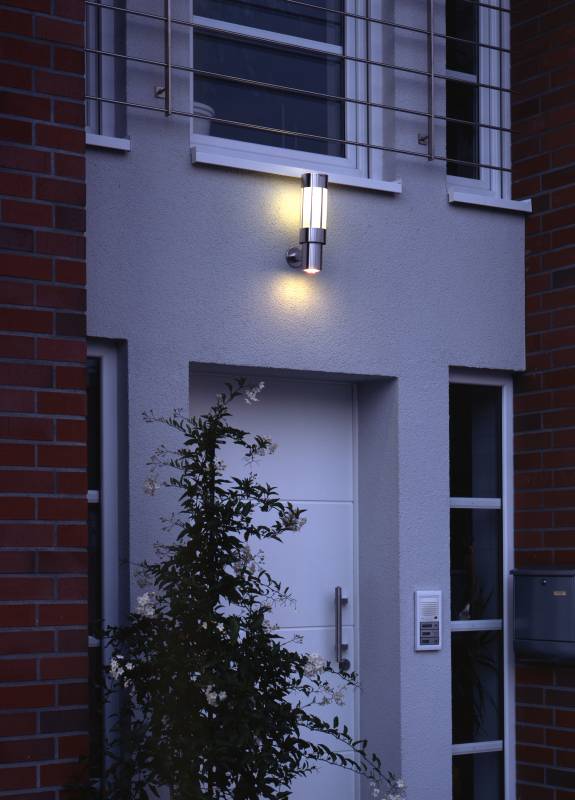

Wall light Stainless steel Milieu picture Article 690243
Wall light Stainless steel Milieu picture Article 690243
Wall light Stainless steel Milieu picture Article 690243

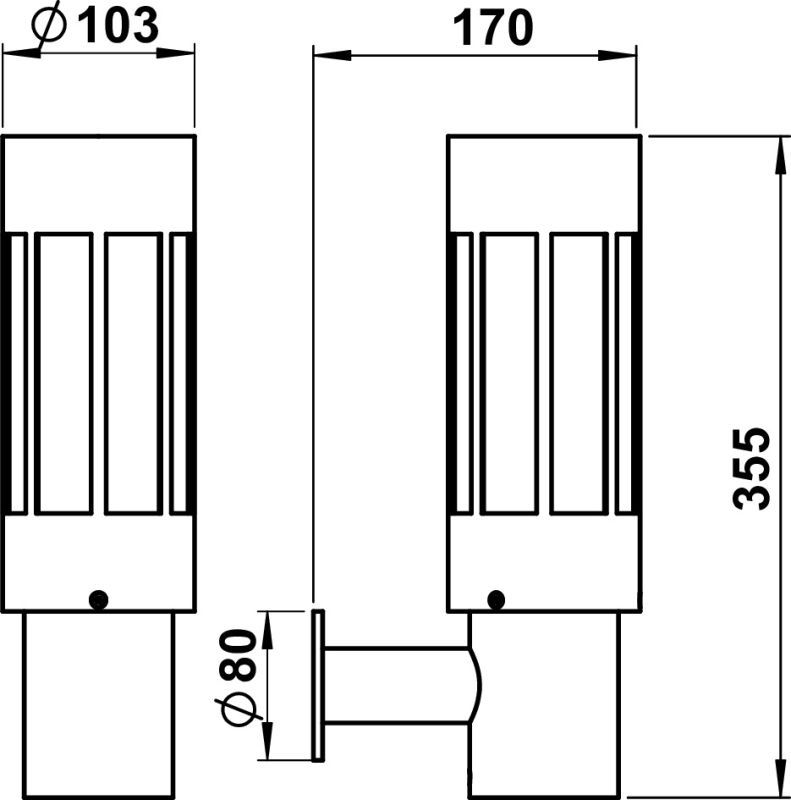

Wall light Stainless steel Dimensioned drawing Article 690243
Wall light Stainless steel Product Image Article 690243
Wall light Stainless steel Milieu picture Article 690243
Wall light Stainless steel Milieu picture Article 690243
Wall light Stainless steel Milieu picture Article 690243
Wall light Stainless steel Dimensioned drawing Article 690243
Article number 690243

Wall light

type ..0243

€237,90

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert wall lamp 690243 – with additional underlight – made of stainless steel with opal glass. Suitable for 1 x incandescent lamp A60 75W and for 1 x PAR 20 50W for socket E27. protection class IP 44 – protection class : d 103 x 360 x 170 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction
download PDF 29.88 KB
Dimensioned drawing
download PDF 18.77 KB
Light distribution curve - Eulumdat/LDT
download LDT 1.54 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90210281 - G 281, opal glass matt show
Accessories
691003 - Corner bracket type ..1003 show
90750100 - LED Retrofit Classic show
90750108 - LED PAR 20 show
90750309 - LED Retrofit Tube show

Additional information

Weight 2,10 kg
Style

Edelstahl, Modern
Material housing

Stainless steel
Material cover

Glass opal
Voltage type

AC
Type of control gear

Not required
Protection class

I
Suitable for number of lamps

2
Light sharing

Symmetric
Colour housing

Stainless steel
Lamp holder

E27
Dimming phase cut-off

Yes
Dimming phase cut-on

Yes
Suitable for surface mounting

Yes
Dimming manufacturer's proprietary system

Yes
Light output

1-seitig
Height/depth

355 mm
Power factor

1
Highest energy efficiency class of the exchangeable lamp

A++
Degree of protection (IP)

IP44
Nominal voltage

230 V
No dim function

Yes
Dimming depending on control gear

Yes
Mounting Type

Wand
Beam angle

Open beam/diffuse
Light output

Direct
Suitable for lamp power

1 – 75 W
Unified Glare Ratio (UGR)

1
Photobiological safety according to EN 62471

RG1
Max. system power

75 W
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Type of wiring

Ending
Conductor cross section

2.5 mm²
Suitable for wall mounting

Yes
Outer diameter

103 mm
Light type

Wandleuchte
Lowest energy efficiency class of the exchangeable lamp

E
Height

< 700 mm
Surface protection housing

Untreated
Length

170 mm
Connection type

Screwed terminal
Number of poles

3
Shape

Eckig
