Data sheet

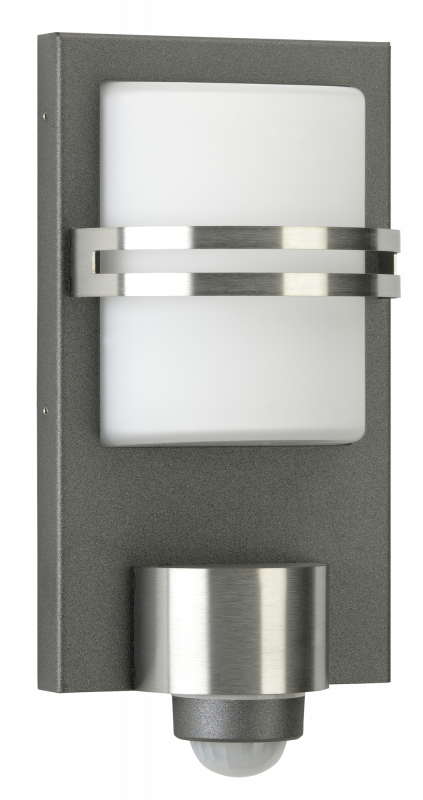

Wall light with BWM Anthracite Product Image Article 626261

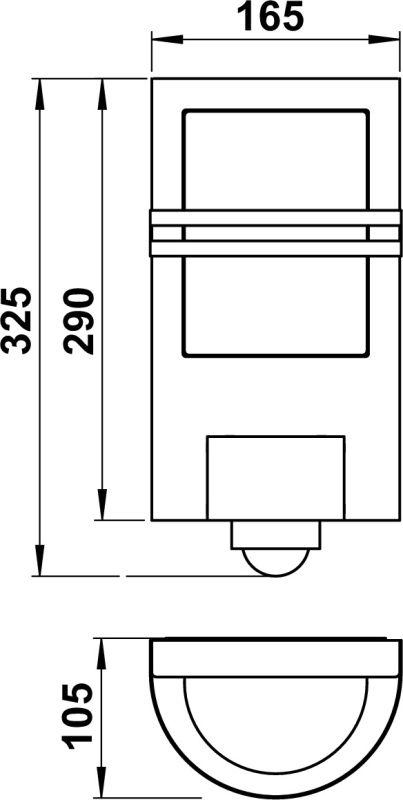

Wall light with BWM Anthracite Dimensioned drawing Article 626261
Wall light with BWM Anthracite Product Image Article 626261
Wall light with BWM Anthracite Dimensioned drawing Article 626261
Article number 626261

Wall light with BWM

type ..6261

€255,20

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Wall lamp type no. 6261 with BWM
Colour: anthracite, 1 x lamp, E27, A++ to E, for general purpose lamps, stainless steel, opal glass,

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Anthracite
Lamp holder
E27
Suitable for lamp power
1 - 57 W
Material cover
Glass opal
Documents and files
Assembly instruction
download PDF 32.93 KB
Dimensioned drawing
download PDF 61.15 KB
Light distribution curve - Eulumdat/LDT
download LDT 2.54 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90210107 - G 107, opal glass show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight 1,90 kg
Light type

Wandleuchte
Dimming phase cut-on

Yes
Max. system power

57 W
Highest energy efficiency class of the exchangeable lamp

A++
Lamp holder

E27
Nominal voltage

230 V
Height/depth

325 mm
Material cover

Glass opal
Dimming phase cut-off

Yes
Suitable for lamp power

1 – 57 W
Voltage type

AC
Colour housing

Anthracite
Suitable for surface mounting

Yes
Suitable for number of lamps

1
Protection class

I
Material housing

Stainless steel
Dimming manufacturer's proprietary system

Yes
Number of poles

3
Type of control gear

Not required
Degree of protection (IP)

IP44
Light output

Direct
Connection type

Screwed terminal
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Type of wiring

Ending
Width

165 mm
Length

105 mm
Style

Bicolor, Modern
Unified Glare Ratio (UGR)

1
Photobiological safety according to EN 62471

RG1
Power factor

1
Dimming depending on control gear

Yes
Suitable for wall mounting

Yes
Beam angle

Open beam/diffuse
Lowest energy efficiency class of the exchangeable lamp

E
Light output

1-seitig
Mounting Type

Wand
Height

< 700 mm
Surface protection housing

Lacquered
Conductor cross section

2.5 mm²
No dim function

Yes
Light sharing

Asymmetric
Shape

Eckig
