Article number Select a color, please

Wall light

type ..0281

428,70492,90

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
5 W
Rated luminous flux according to IEC 62722-2-1
480 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

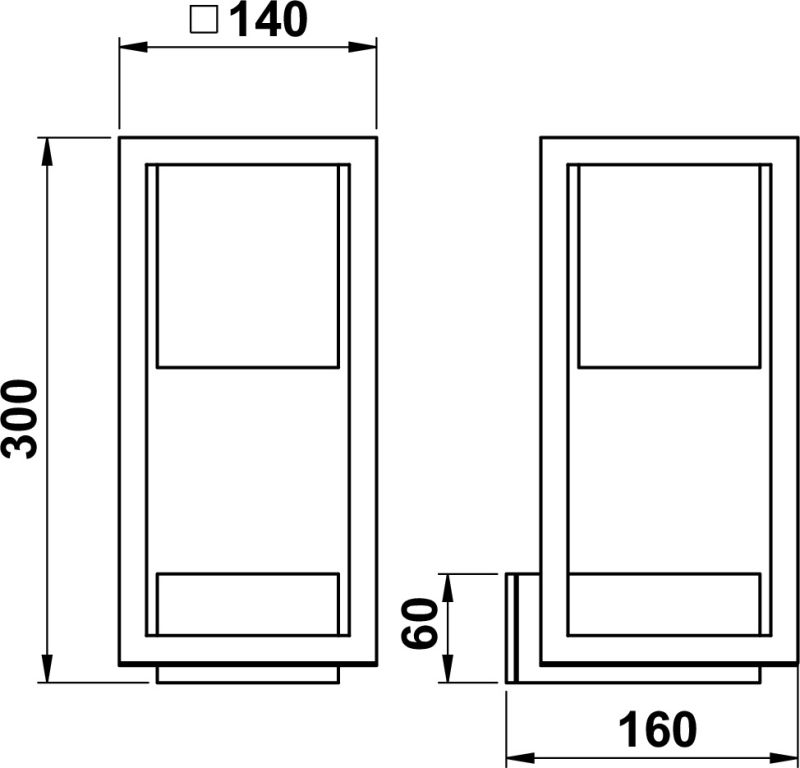

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620281
Offertext
For: 660281
Offertext
For: 680281
Offertext
For: 690281
Full catalog 21 / 22
Spare parts
90260082 - G 82, PMMA Vierkantrohr opal L = 100 mm show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Conductor cross section

2.5 mm²

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

With light source

Yes

Degree of protection (IP)

IP54

Max. system power

5 W

Height/depth

300 mm

Width

140 mm

Suitable for surface mounting

Yes

Lamp type

LED exchangeable

Material cover

Plastic, opal

Suitable for number of lamps

1

Colour rendering index CRI

80-89

Length

160 mm

Rated luminous flux according to IEC 62722-2-1

480 lm

Colour housing

Anthracite, Black, Silver, White

Material housing

Aluminium

Voltage type

AC

With control gear

No, Yes

Dimming phase cut-off

No, Yes

Suitable for lamp power

5 W

Light output

Direct

Max. number of luminaires per miniature circuit breaker C16

30

Highest energy efficiency class of the exchangeable lamp

A++

Exchangeable control gear

No, Yes

Light sharing

Symmetric

Energy efficiency class of the provided exchangeable built-in lamp

E

Beam angle

Open beam/diffuse

Number of poles

3

Light output

1-seitig

Colour consistency (McAdam ellipse)

SDCM3

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Type of wiring

Ending

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Protection class

I

Power factor

0.9

Connection type

Screwed terminal

Colour temperature

3000 K

Colour of light

White

Flickering value Pst LM

1

Height

< 700 mm

Photobiological safety according to EN 62471

RG1

Style

Modern

Light type

Wandleuchte

No dim function

Yes

Mounting Type

Wand

Shape

Eckig

Dimming depending on control gear

Yes

Surface protection housing

Lacquered

Stroboscope effect value SVM

0.4

Unified Glare Ratio (UGR)

1
