Article number Select a color, please

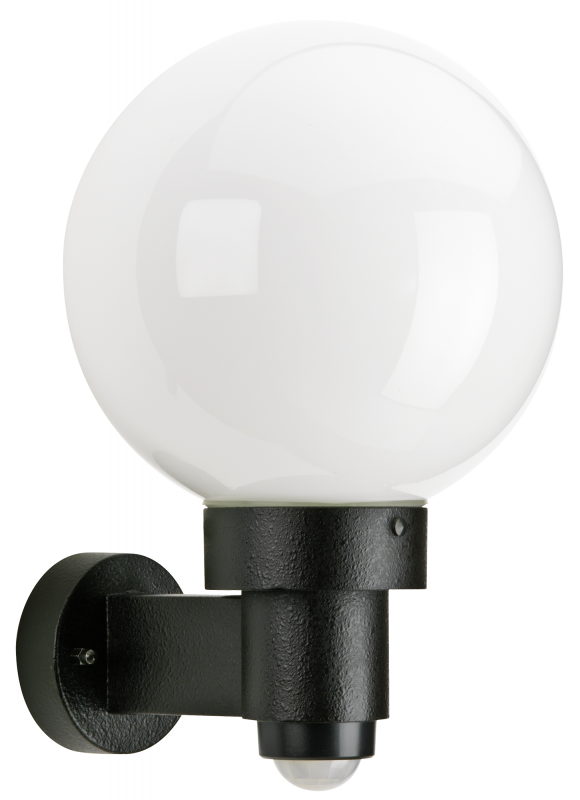

Wall light

type ..0257

199,90

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Suitable for number of lamps

1

Type of control gear

Not required

Connection type

Screwed terminal

Nominal voltage

230 V

Dimming depending on control gear

Yes

Voltage type

AC

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Protection class

I

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Degree of protection (IP)

IP44

Power factor

1

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Outer diameter

250 mm

Coverage

360 °

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Height/depth

370 mm

Max. system power

75 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Beam angle

Open beam/diffuse

Number of poles

3

Conductor cross section

2.5 mm²

No dim function

Yes

Length

285 mm

Type of wiring

Ending

Unified Glare Ratio (UGR)

1

Light sharing

Symmetric

Height

< 700 mm

Surface protection housing

Lacquered

Shape

Eckig

Photobiological safety according to EN 62471

RG1

Style

Modern

Documents and files
Data sheet
Assembly instruction
PDF | 131 KB

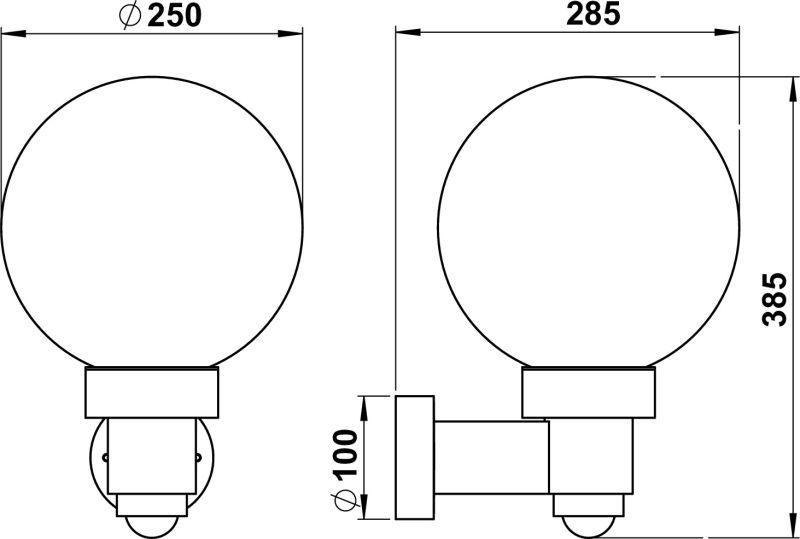

Dimensioned drawing
PDF | 94 KB
Instruction manual
PDF | 210 KB
Light distribution curve - Eulumdat/LDT
LDT | 177 KB
Offertext
For: 660257
TXT | 316 B
Offertext
For: 680257
TXT | 286 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210060 - G-60, glass sphere opal, d = 250 mm show
Accessories
661005 - Corner bracket round type ..1005, Black
Für: 660257
show
681005 - Corner bracket round type ..1005, White
Für: 680257
show
90750100 - LED Retrofit Classic show
