Article number Select a color, please

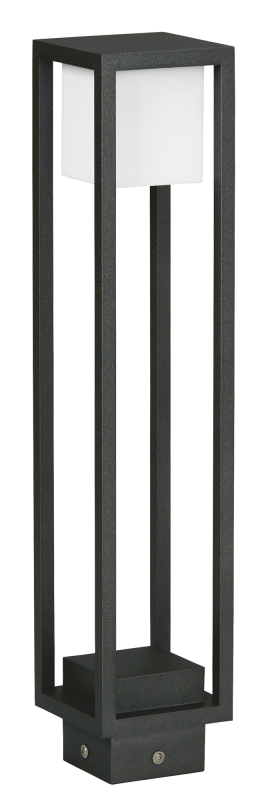

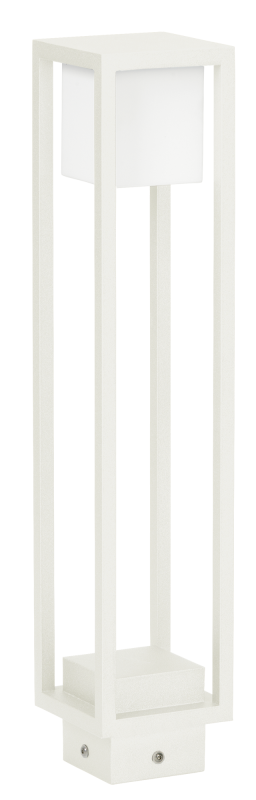

Bollard light

type ..2281

422,10485,20

Clear
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

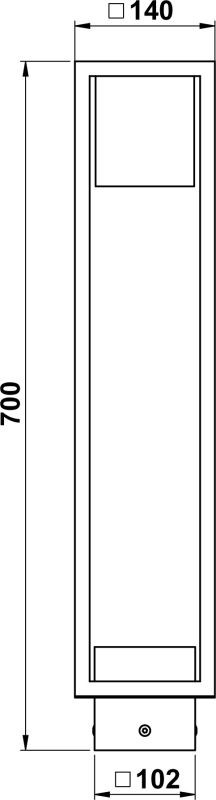

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622281
Offertext
For: 662281
Offertext
For: 682281
Offertext
For: 692281
Full catalog 21 / 22
Spare parts
90260088 - G 88, PMMA square tube opal L = 112 mm show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Suitable for number of lamps

1

Material cover

Glass opal

Voltage type

AC

Type of control gear

LED operating device voltage-controlled

Highest energy efficiency class of the exchangeable lamp

A+

Colour rendering index CRI

80-89

Nominal voltage

230 V

Number of poles

3

Protection class

I

Lamp type

LED exchangeable

With light source

Yes

Max. system power

10 W

Type of wiring

Suitable for through wiring

Degree of protection (IP)

IP54

Power factor

0.9

Light type

Standleuchte

With control gear

Yes

Height/depth

700 mm

Lowest energy efficiency class of the exchangeable lamp

E

Material housing

Aluminium

Colour housing

Anthracite, Black, Silver, White

Surface protection

Lacquered

Energy efficiency class of the provided exchangeable built-in lamp

E

With base plate

Yes

Exchangeable control gear

Yes

Colour of light

White

Colour temperature

3000 K

Height

< 700 mm, 700 – 1000 mm

Style

Modern

Rated luminous flux according to IEC 62722-2-1

900 lm

Length

140 mm

Light output

Direct/indirect

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Light output

2-seitig

Conductor cross section

2.5 mm²

Suitable for lamp power

10 W

Width

140 mm

Connection type

Screwed terminal

Shape

Eckig
