Article number Select a color, please

Wall light

type ..0281

418,20480,90

Clear
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
5 W
Rated luminous flux according to IEC 62722-2-1
480 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

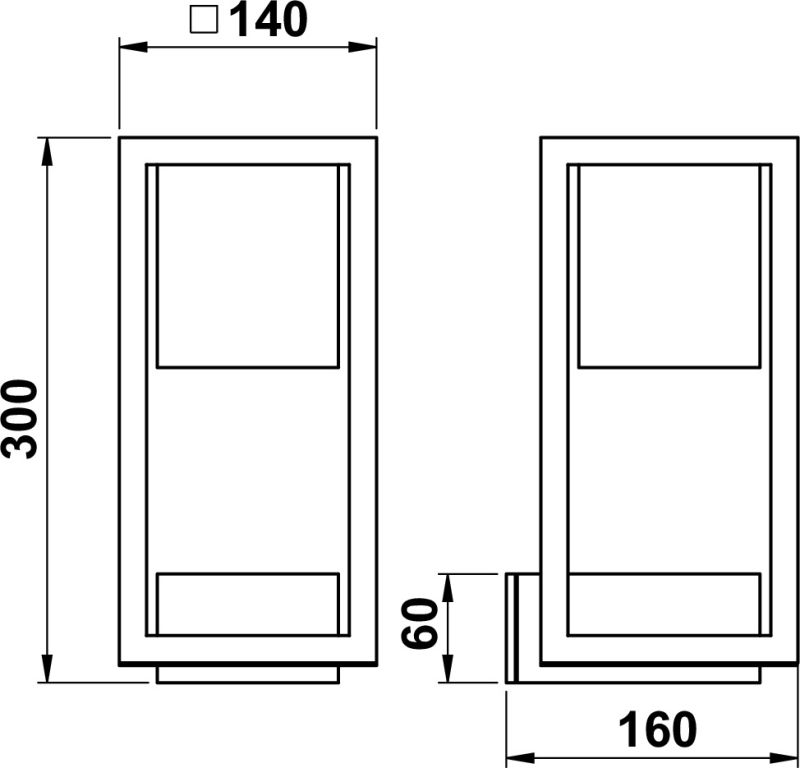

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620281
Offertext
For: 660281
Offertext
For: 680281
Offertext
For: 690281
Full catalog 21 / 22
Spare parts
90260088 - G 88, PMMA square tube opal L = 112 mm show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Colour rendering index CRI

80-89

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

With light source

Yes

Degree of protection (IP)

IP54

Max. system power

5 W

Conductor cross section

2.5 mm²

Suitable for surface mounting

Yes

Lamp type

LED exchangeable

Material cover

Plastic, opal

Suitable for number of lamps

1

Length

160 mm

Voltage type

AC

With control gear

No, Yes

Colour housing

Anthracite, Black, Silver, White

Material housing

Aluminium

Width

140 mm

Suitable for lamp power

5 W

Height/depth

300 mm

Rated luminous flux according to IEC 62722-2-1

480 lm

Dimming phase cut-off

No, Yes

Light outlet

Direct

Exchangeable control gear

No, Yes

Max. number of luminaires per miniature circuit breaker C16

30

Light type

Wandleuchte

Light sharing

Symmetric

Energy efficiency class of the provided exchangeable built-in lamp

E

Beam angle

Open beam/diffuse

Number of poles

3

Light outlet

1-seitig

Max. number of luminaires per miniature circuit breaker B16

20

Flickering value Pst LM

1

Type of wiring

Ending

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Protection class

I

Power factor

0.9

Connection type

Screwed terminal

Colour temperature

3000 K

Colour of light

White

Style

Modern

Lowest energy efficiency class of the exchangeable lamp

E

Photobiological safety according to EN 62471

RG1

Colour consistency (McAdam ellipse)

SDCM3

No dim function

Yes

Mounting method

Wand

Shape

Eckig

Dimming depending on control gear

Yes

Surface protection housing

Lacquered

Height

< 700 mm

Stroboscope effect value SVM

0.4

Highest energy efficiency class of the exchangeable lamp

A++

Unified Glare Ratio (UGR)

1
