Data sheet

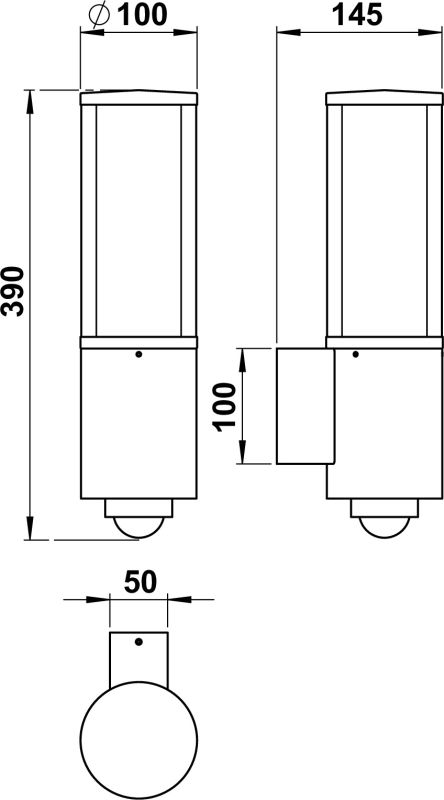

Wall light Stainless steel Dimensioned drawing Article 690322
Wall light Stainless steel Dimensioned drawing Article 690322
Article number 690322

Wall light

type ..0322

€299,70

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert wall lamp 690322 – with integrated motion detector – made of stainless steel with opal glass and acrylic glass cylinder clear. Suitable for 1 x lamp max. 18W, socket E27, with mounting plate made of cast aluminium, protection class IP 44 – protection class : d 100 x 145 x 400 mm

Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Documents and files
Assembly instruction
download PDF 33.47 KB
Dimensioned drawing
download PDF 104.38 KB
Instruction manual
download PDF 209.54 KB
Light distribution curve - Eulumdat/LDT
download LDT 1.54 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
90260370 - G 370, Acrylic tube show
Accessories
691000 - Corner bracket type ..1000 show
90750309 - LED Retrofit Tube show

Additional information

Weight 2,30 kg
With light sensor

Yes
Voltage type

AC
Type of control gear

Not required
Nominal voltage

230 V
With movement sensor

Yes
Conductor cross section

2.5 mm²
Dimming phase cut-off

Yes
Dimming manufacturer's proprietary system

Yes
Lamp type

LED exchangeable
Max. system power

20 W
Suitable for number of lamps

1
Lamp holder

E27
Suitable for lamp power

1 – 20 W
Colour housing

Stainless steel
Material cover

Glass opal
Dimming phase cut-on

Yes
Material housing

Stainless steel
Dimming depending on control gear

Yes
Type of wiring

Ending
Suitable for surface mounting

Yes
Height

< 700 mm
Protection class

I
Number of poles

3
Degree of protection (IP)

IP44
Coverage

360 °
Suitable for wall mounting

Yes
Outer diameter

100 mm
Light sharing

Symmetric
Beam angle

Open beam/diffuse
Light output

Direct
Highest energy efficiency class of the exchangeable lamp

A++
Lowest energy efficiency class of the exchangeable lamp

E
Connection type

Screwed terminal
Mounting Type

Wand
Style

Edelstahl, Modern
Unified Glare Ratio (UGR)

1
Height/depth

390 mm
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
No dim function

Yes
Photobiological safety according to EN 62471

RG1
Surface protection housing

Untreated
Light type

Wandleuchte
Light output

1-seitig
Power factor

1
Length

145 mm
Shape

Eckig
