Article number 690323

Wall light

type ..0323

276,70

Description

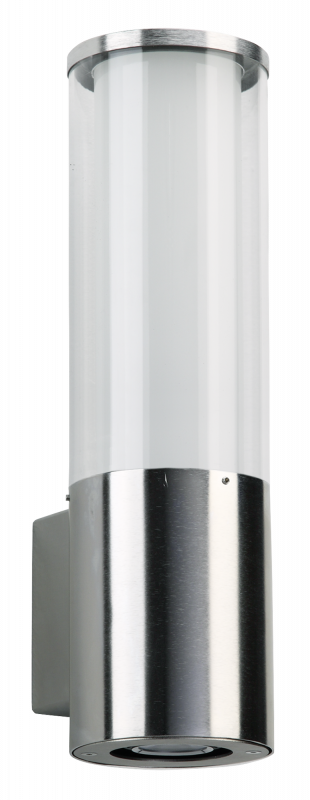

Albert wall lamp 690323 – with additional underlight – made of stainless steel with opal glass and clear acrylic glass cylinder. Suitable for 1 x lamp max. 18W, socket E27, as well as for 1 x PAR 16 50W for socket GU10.with mounting plate in cast aluminium protection class IP 44 – protection class : d 100 x 145 x 385 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Documents and files
Assembly instruction

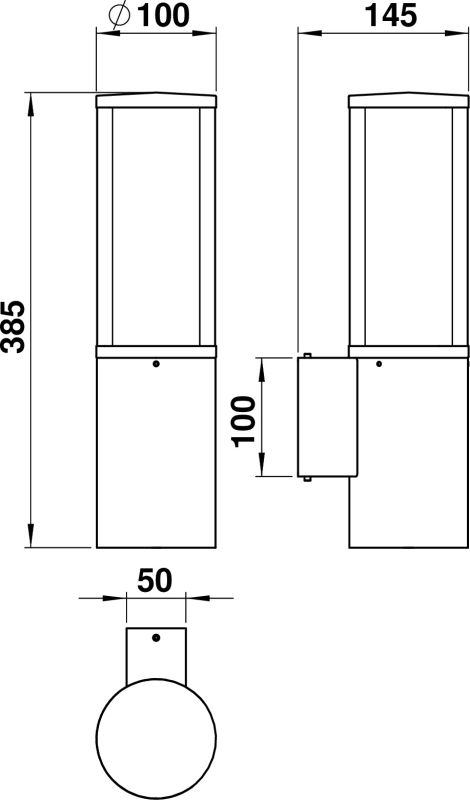

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
90260370 - G 370, Acrylic tube show
Accessories
691000 - Corner bracket type ..1000 show
90750104 - LED PAR 16 warm to dim show
90750105 - LED PAR 16 show
90750309 - LED Retrofit Tube show

Additional information

Weight 2,30 kg
Style

Edelstahl, Modern

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Protection class

I

Material housing

Stainless steel

Suitable for number of lamps

2

Light sharing

Symmetric

Colour housing

Stainless steel

Lamp type

LED exchangeable

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Dimming manufacturer's proprietary system

Yes

Light output

1-seitig

Height/depth

385 mm

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP44

Nominal voltage

230 V

Lamp holder

E27

No dim function

Yes

Outer diameter

100 mm

Dimming depending on control gear

Yes

Beam angle

Open beam/diffuse

Light output

Direct

Suitable for lamp power

1 – 20 W

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Mounting Type

Wand

Max. system power

20 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Conductor cross section

2.5 mm²

Suitable for wall mounting

Yes

Light type

Wandleuchte

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Surface protection housing

Untreated

Length

145 mm

Connection type

Screwed terminal

Number of poles

3

Shape

Eckig
