Data sheet
Article number
Select a color, please
Wall light
type ..0672
This product is no longer in our assortment.
You can find a successor of this product listed below.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
GU5.3
Suitable for lamp power
50 W
Material cover
Glass transparent
Documents and files
Assembly instruction

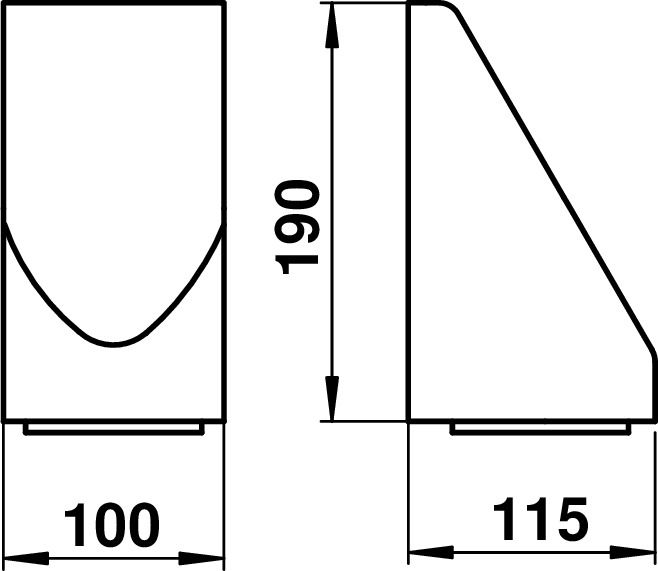

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 660672
Offertext
For: 680672
Offertext
For: 690672
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Dimming depending on control gear | Yes |
| Dimming phase cut-off | Yes |
| Nominal voltage | 230 V |
| Suitable for surface mounting | Yes |
| Protection class | I |
| Lamp type | HV halogen lamp |
| Type of control gear | Magnetic transformer |
| Lamp holder | GU5.3 |
| Material housing | Aluminium |
| Colour housing | Black, Silver, White |
| Material cover | Glass transparent |
| Voltage type | AC/DC |
| Dimming phase cut-on | Yes |
| With control gear | Yes |
| Suitable for number of lamps | 1 |
| Width | 100 mm |
| No dim function | Yes |
| Type of wiring | Ending |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Height | < 700 mm |
| Light type | Wandleuchte |
| Light output | 1-seitig |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Suitable for lamp power | 50 W |
| Light output | Direct |
| Degree of protection (IP) | IP43 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Max. system power | 50 W |
| Power factor | 1 |
| Height/depth | 190 mm |
| Mounting Type | Wand |
| Length | 115 mm |
| Unified Glare Ratio (UGR) | 1 |
| Exchangeable control gear | Yes |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Photobiological safety according to EN 62471 | RG1 |
| Surface protection housing | Lacquered |
| Shape | Eckig |
