Article number Select a color, please

Base luminaire

type ..0523

257,20

Clear
Features
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
R7s
Suitable for lamp power
0 - 80 W
Material cover
Glass transparent
Documents and files
Assembly instruction

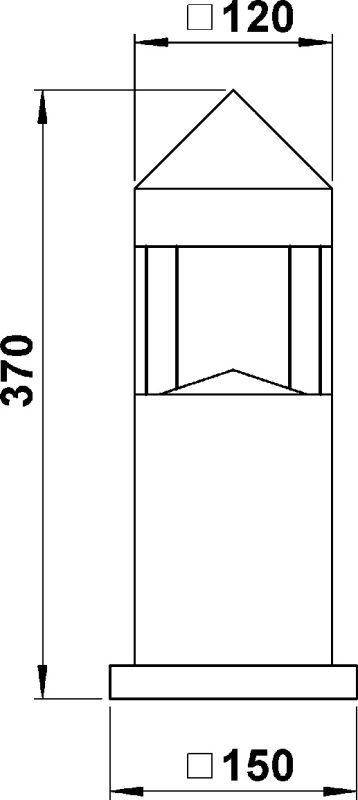

Dimensioned drawing
Offertext
For: 660523
Offertext
For: 680523
Full catalog 21 / 22
Spare parts
90220108 - G 108, borosilicate glass pane show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Pedestal luminaire

Material housing

Aluminium

With base plate

Yes

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Material cover

Glass transparent

Colour housing

Black, White

Highest energy efficiency class of the exchangeable lamp

A++

Surface protection

Lacquered

Lamp holder

R7s

Suitable for number of lamps

1

Lamp type

HV halogen lamp

Lowest energy efficiency class of the exchangeable lamp

A

Height/depth

370 mm

Shape

Eckig

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Type of wiring

Suitable for through wiring

Length

120 mm

Width

150 mm

Power factor

1

Max. system power

80 W

Suitable for lamp power

0 – 80 W

Protection class

I

Degree of protection (IP)

IP44

Height

< 700 mm

Style

Modern
