Article number Select a color, please

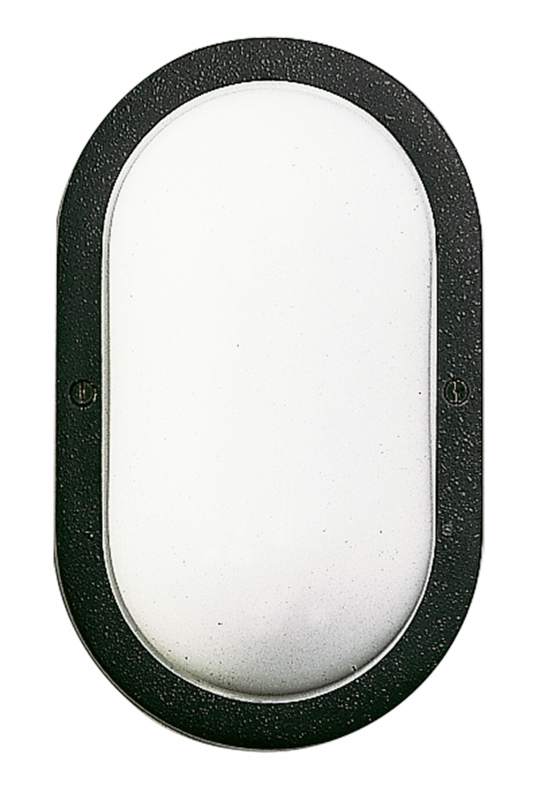

Wall light

type ..6037

143,60

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Type of control gear

Not required

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Nominal voltage

230 V

Protection class

I

Light sharing

Symmetric

Suitable for number of lamps

1

Voltage type

AC

Highest energy efficiency class of the exchangeable lamp

A++

Number of poles

3

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light output

1-seitig

Max. system power

75 W

Beam angle

Open beam/diffuse

Power factor

1

Lowest energy efficiency class of the exchangeable lamp

E

Light output

Direct

Width

180 mm

Degree of protection (IP)

IP44

Height

< 700 mm

Connection type

Screwed terminal

Shape

Eckig

Mounting Type

Decke, Wand

Light type

Wandleuchte

No dim function

Yes

Length

100 mm

Type of wiring

Ending

Style

Modern

Surface protection housing

Lacquered

Height/depth

280 mm

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Documents and files
Data sheet
Assembly instruction
PDF | 35 KB

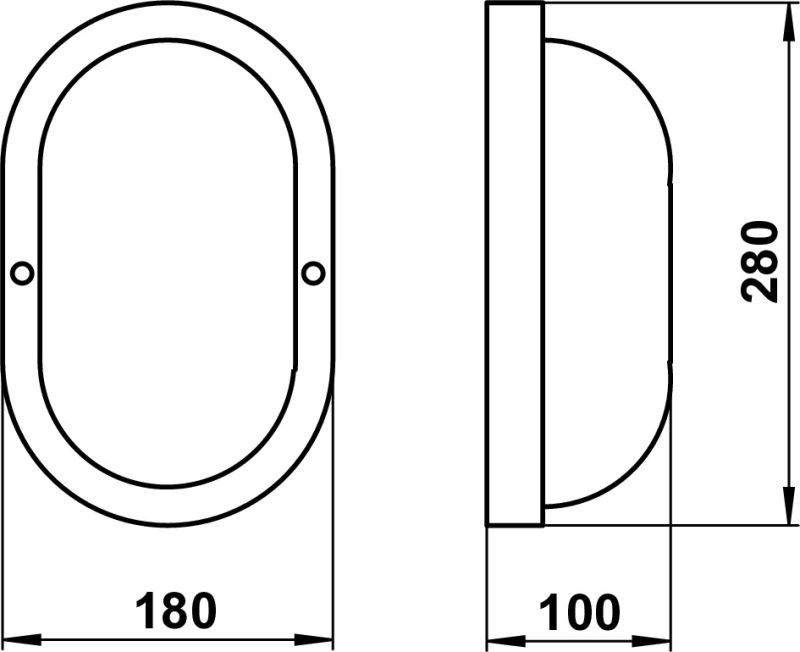

Dimensioned drawing
PDF | 120 KB
Light distribution curve - Eulumdat/LDT
LDT | 44 KB
Offertext
For: 666037
TXT | 418 B
Offertext
For: 686037
TXT | 419 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210064 - G 64, glass oval, opal-etched matt show
Accessories
90750100 - LED Retrofit Classic show
