Data sheet

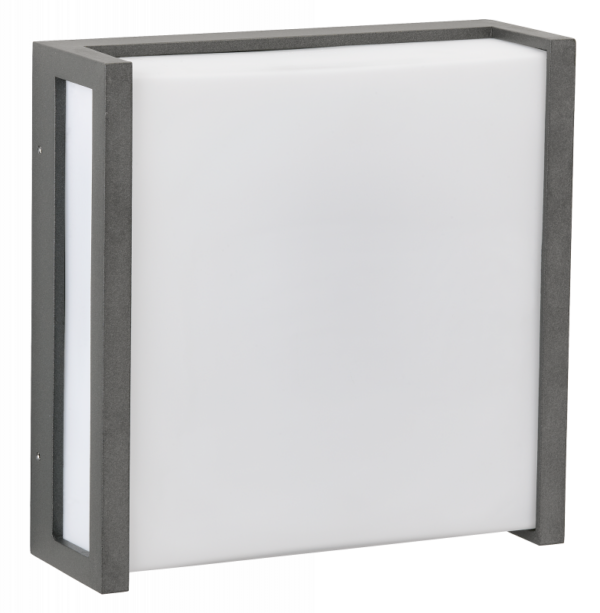

Wall light Anthracite Product Image Article 626401

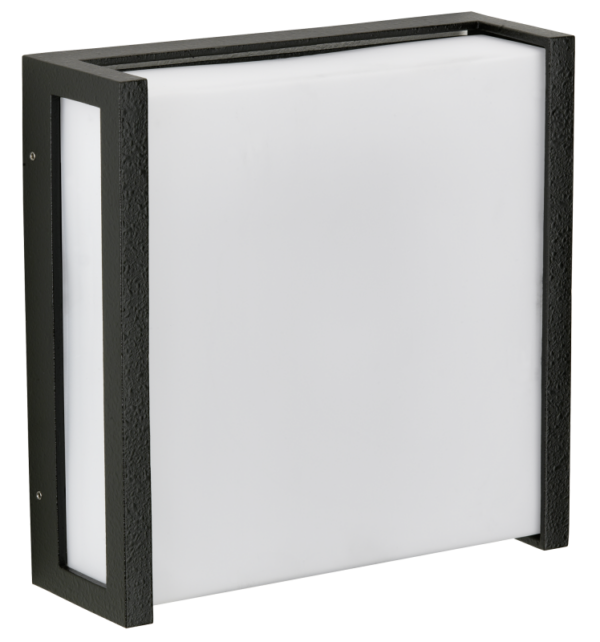

Wall light Black Product Image Article 666401

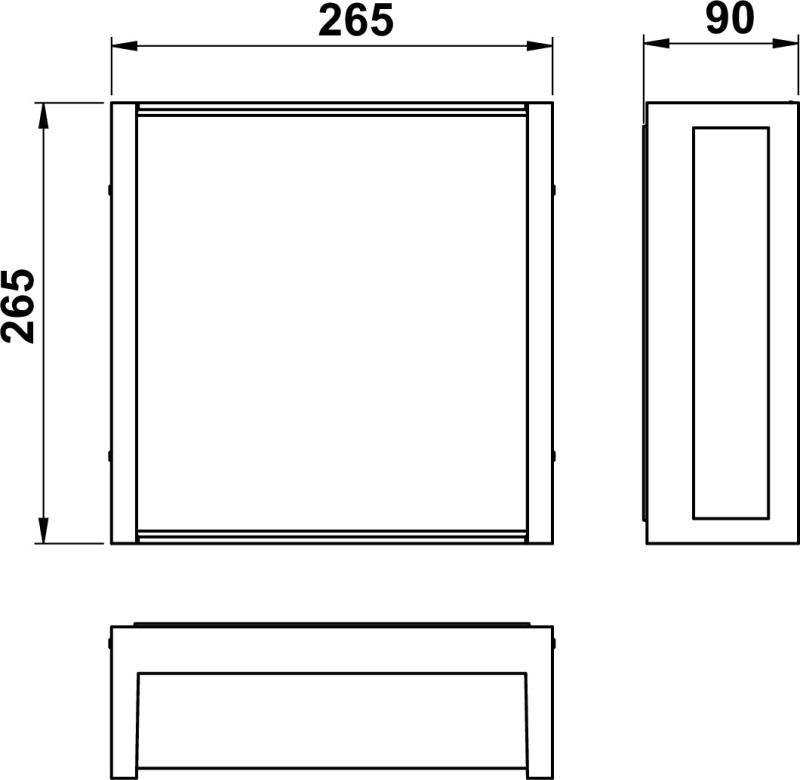

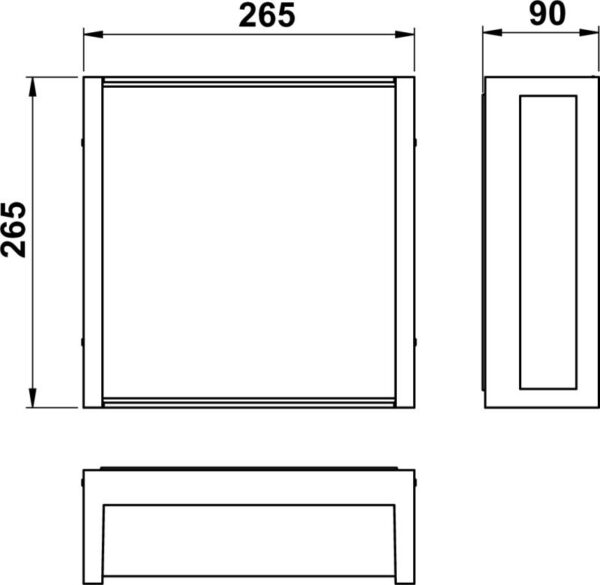

Wall light Dimensioned drawing Article 626401, 666401
Wall light Anthracite Product Image Article 626401
Wall light Dimensioned drawing Article 626401, 666401
Wall light Black Product Image Article 666401
Wall light Dimensioned drawing Article 626401, 666401
Article number Select a color, please

Wall light

type ..6401

€256,40 – €294,70

Manufacturer's Suggested Retail Price excl. VAT

Find Retailer

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction
download PDF 22.96 KB
Dimensioned drawing
download PDF 136.76 KB
Light distribution curve - Eulumdat/LDT
download LDT 2.54 KB
Offertext
For: 626401
download TXT 261 B
Offertext
For: 666401
download TXT 256 B
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90210393 - G 393, glass opal matt show

Additional information

Weight N/A
Suitable for wall mounting

Yes
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Voltage type

AC
Nominal voltage

230 V
Material cover

Glass opal
Lamp type

LED exchangeable
Type of control gear

LED operating device voltage-controlled
Dimming phase cut-off

Yes
Suitable for ceiling mounting

Yes
Suitable for surface mounting

Yes
Material housing

Aluminium
Beam angle

Open beam/diffuse
Colour housing

Anthracite, Black
Suitable for number of lamps

1
With control gear

No, Yes
With light source

Yes
Light sharing

Symmetric
Type of wiring

Ending
Width

265 mm
Colour rendering index CRI

80-89
Power factor

0.9
Suitable for lamp power

10 W
Number of poles

3
Conductor cross section

2.5 mm²
Dimming depending on control gear

Yes
No dim function

Yes
Light output

Direct
Length

90 mm
Colour temperature

3000 K
Energy efficiency class of the provided exchangeable built-in lamp

E
Light output

1-seitig
Light type

Wandleuchte
Mounting Type

Decke, Wand
Shape

Eckig
Height/depth

265 mm
Protection class

I
Degree of protection (IP)

IP44
Connection type

Screwed terminal
Colour of light

White
Rated luminous flux according to IEC 62722-2-1

900 lm
Max. system power

10 W
Height

< 700 mm
Style

Modern
Surface protection housing

Lacquered
Exchangeable control gear

No, Yes
Colour consistency (McAdam ellipse)

SDCM3
Highest energy efficiency class of the exchangeable lamp

A++
Lowest energy efficiency class of the exchangeable lamp

E
Max. number of luminaires per miniature circuit breaker B16

20
Max. number of luminaires per miniature circuit breaker C16

30
Flickering value Pst LM

1
Stroboscope effect value SVM

0.4
Photobiological safety according to EN 62471

RG1
Unified Glare Ratio (UGR)

1
