Article number Select a color, please

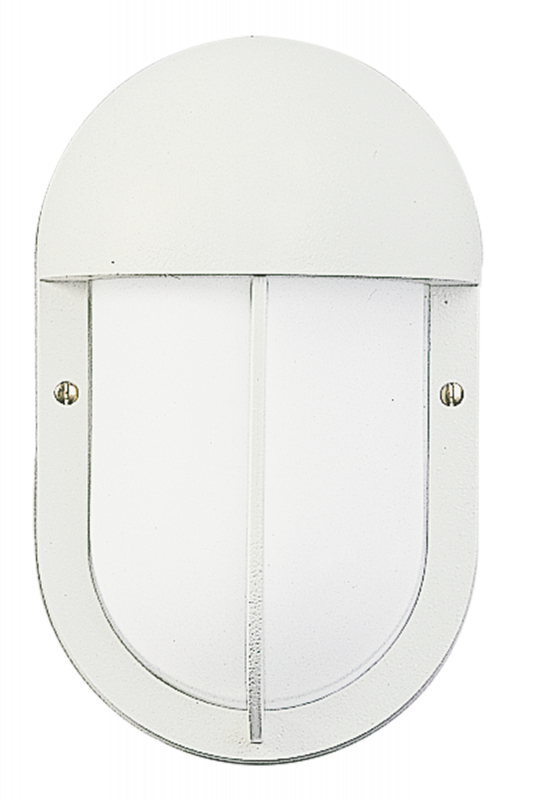

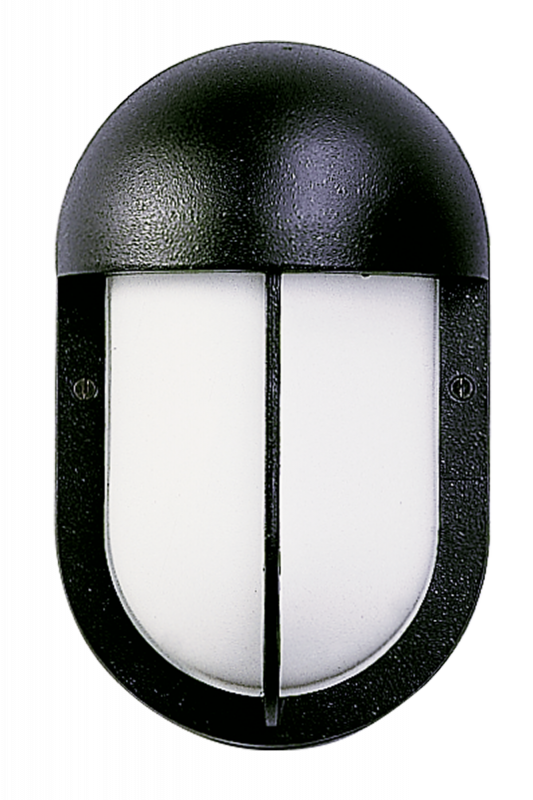

Wall light

type ..6031

145,40

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

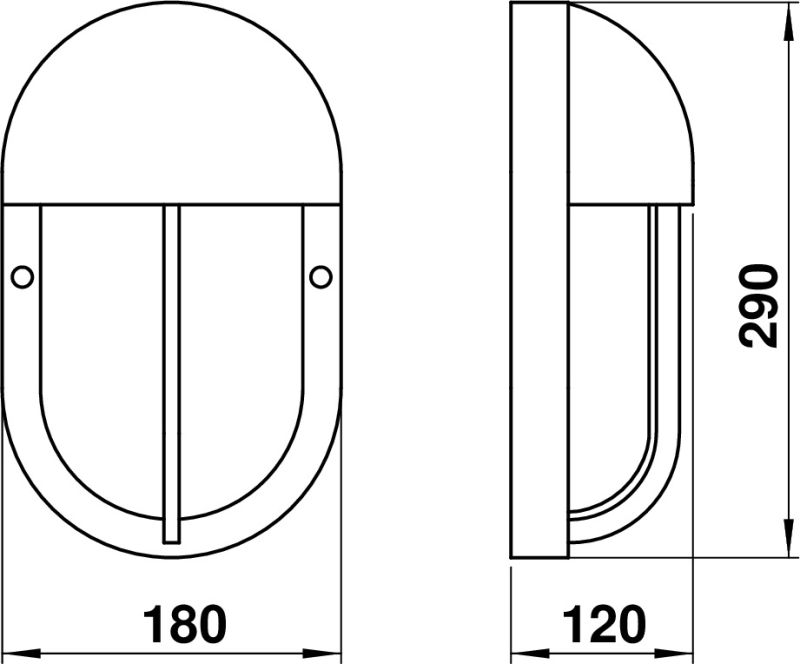

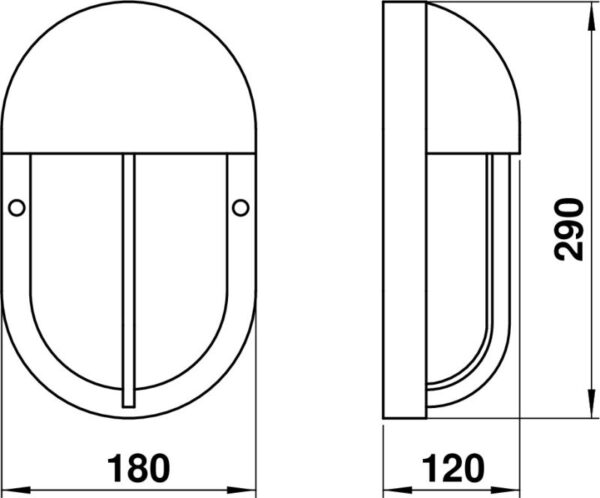

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 666031
Offertext
For: 686031
Full catalog 21 / 22
Spare parts
90210064 - G 64, glass oval, opal-etched matt show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Nominal voltage

230 V

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Protection class

I

Light sharing

Symmetric

Suitable for number of lamps

1

Lamp holder

E27

Material cover

Glass opal

Voltage type

AC

Colour housing

Black, White

Material housing

Aluminium

Highest energy efficiency class of the exchangeable lamp

A++

Number of poles

3

Conductor cross section

2.5 mm²

Type of control gear

Not required

Dimming depending on control gear

Yes

Light outlet

1-seitig

Height

< 700 mm

Max. system power

75 W

Beam angle

Open beam/diffuse

Power factor

1

Lowest energy efficiency class of the exchangeable lamp

E

Light outlet

Direct

Width

180 mm

Degree of protection (IP)

IP44

No dim function

Yes

Suitable for lamp power

1 – 75 W

Connection type

Screwed terminal

Shape

Eckig

Mounting method

Decke, Wand

Light type

Wandleuchte

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Length

120 mm

Type of wiring

Ending

Style

Modern

Surface protection housing

Lacquered

Height/depth

290 mm

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1
