Data sheet

Article number 690251

Wall light

Name: Wall light type ..0251
SKU: 690251
Availability: InStock

type ..0251

€225,00

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer

Specifications

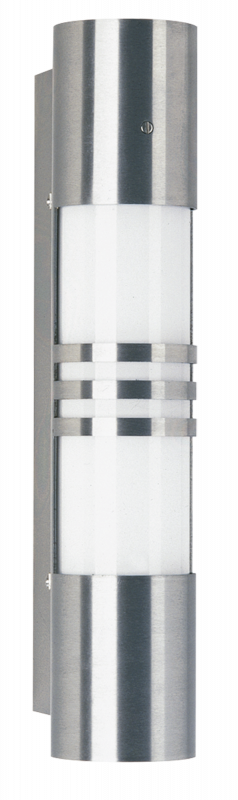

Albert wall lamp 690251 in stainless steel, with opal glass. With separate mounting plate. Equipped for 1 x compact fluorescent lamp with integrated. EVG lamp 18 W, socket E27.protection class IP 44 – protection class : 80 x 400 x 115 mm

Features

Luminaire has IP 44 protection.

The light source is replaceable.

Luminaire is equipped with LED components.

LED components can be replaced.

Luminaire is to be equipped with LED retrofit bulb.

Material housing

Stainless steel

Colour housing

Stainless steel

Lamp type

LED exchangeable

Lamp holder

E27

Suitable for lamp power

1 - 20 W

Material cover

Glass opal

Weight	2,80 kg
Style	Edelstahl, Modern
Suitable for wall mounting	Yes
Conductor cross section	2.5 mm²
Type of wiring	Ending
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Max. system power	20 W
Photobiological safety according to EN 62471	RG1
Outer diameter	80 mm
Unified Glare Ratio (UGR)	1
Light outlet	Direct
Beam angle	Open beam/diffuse
Dimming depending on control gear	Yes
Mounting method	Wand
Number of poles	3
Connection type	Screwed terminal
Light type	Wandleuchte
Length	115 mm
Surface protection housing	Untreated
Height	< 700 mm
Lowest energy efficiency class of the exchangeable lamp	E
No dim function	Yes
Light sharing	Symmetric
Suitable for number of lamps	1
Protection class	I
Type of control gear	Not required
Voltage type	AC
Nominal voltage	230 V
Degree of protection (IP)	IP44
Highest energy efficiency class of the exchangeable lamp	A++
Power factor	1
Height/depth	400 mm
Light outlet	1-seitig
Dimming manufacturer's proprietary system	Yes
Suitable for surface mounting	Yes
Dimming phase cut-on	Yes
Dimming phase cut-off	Yes
Shape	Eckig

Documents and files

Assembly instruction

PDF | 28.01 KB

download

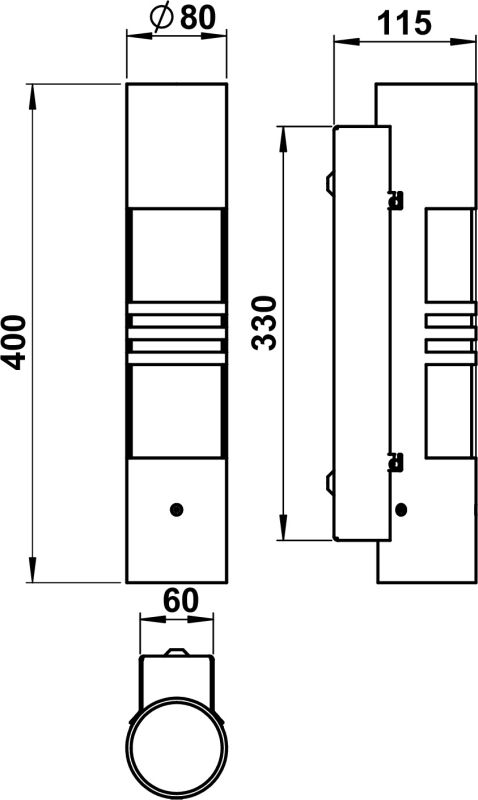

Dimensioned drawing

PDF | 21.52 KB

download

Light distribution curve - Eulumdat/LDT

LDT | 1.53 KB

download

Full catalog 21 / 22

PDF | 38.74 MB

download

Spare parts

90210309 - G 309, opal glass glossy Thread 67 mm show

Accessories

90750309 - LED Retrofit Tube show
