Data sheet

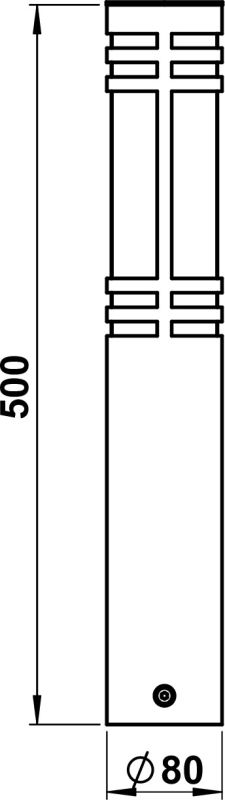

Base luminaire Stainless steel Dimensioned drawing Article 690559
Base luminaire Stainless steel Dimensioned drawing Article 690559
Article number 690559

Base luminaire

type ..0559

€302,40

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

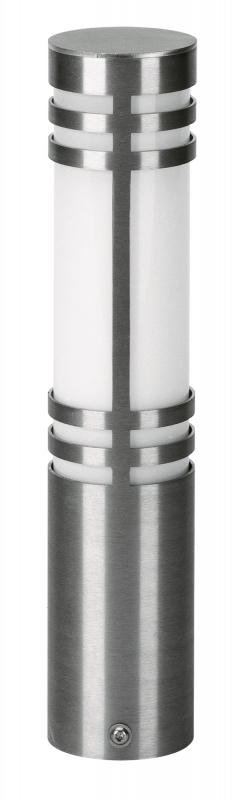

Albert base lamp 690559
Stainless steel, with opal glass. Equipped for 1 x lamp 20 W, socket E27. Ready for connection with mounting plate for screwing onto a foundation or onto the . 690010.protection class IP 44 – protection class I Dimensions: d 80 x 500 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
18 W
Material cover
Glass opal
Documents and files
Assembly instruction
download PDF 26.91 KB
Dimensioned drawing
download PDF 17.09 KB
Light distribution curve - Eulumdat/LDT
download LDT 1.53 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750309 - LED Retrofit Tube show

Additional information

Weight 2,40 kg
Light output

2-seitig
Nominal voltage

230 V
Suitable for number of lamps

1
Lamp type

HV halogen lamp
With base plate

Yes
Highest energy efficiency class of the exchangeable lamp

A++
Lowest energy efficiency class of the exchangeable lamp

E
Connection type

Screwed terminal
Style

Edelstahl, Modern
Conductor cross section

2.5 mm²
Type of control gear

Not required
Voltage type

AC
Material cover

Glass opal
Colour housing

Stainless steel
Material housing

Stainless steel
Lamp holder

E27
Number of poles

3
Type of wiring

Suitable for through wiring
Height/depth

500 mm
Light sharing

Symmetric
Power factor

1
Beam angle

Open beam/diffuse
Light output

Direct/indirect
Diameter

80 mm
Max. system power

20 W
Type of luminaire

Pedestal luminaire
Suitable for lamp power

18 W
Protection class

I
Degree of protection (IP)

IP44
Height

< 700 mm
Housing material quality

Stainless steel 304 (V2A)
Shape

Eckig
