Wall floodlight

Name: Wall floodlight type ..2122
SKU: TYPE-2122-6-2-2122
Availability: InStock

type ..2122

€134,00

Manufacturer's Suggested Retail Price excl. VAT

Colour housing

Clear

Features

The luminaire body can be rotated.

The reflector lamp is replaceable.

Material housing

Aluminium

Colour housing

Black, White

Lamp type

HV halogen lamp

Lamp holder

E27

Suitable for lamp power

120 W

Material cover

Glass transparent

Weight	N/A
Suitable for surface mounting	Yes
Protection class	I
No dim function	Yes
Connectable conductor cross section	0.75 – 2.5 mm²
Connection type	Screwed terminal
Number of poles	3

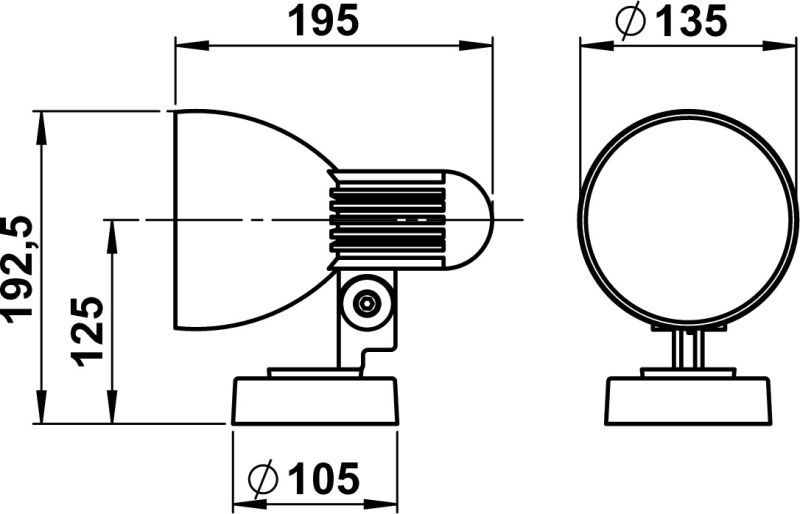

Outer diameter	135 mm
Degree of protection (IP)	IP54
Light sharing	Symmetric
Length	195 mm
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Type of wiring	Ending
Unified Glare Ratio (UGR)	1
Beam angle adjustable	Continuously variable
Suitable for wall mounting	Yes
Height	< 700 mm
Light outlet	1-seitig
Mounting method	Decke
Shape	Angular, Eckig
Luminous flux	0 – 3000 lm
Conductor cross section	2.5 mm²
Max. system power	120 W
Surface protection	Lacquered
Suitable for number of lamps	1
Voltage type	AC
Power factor	1
Adjustability	Rotating and swivelling
Light outlet	Direct
Suitable for pedestal/floor mounting	Yes
Nominal voltage	230 V
Height/depth	192.5 mm
Dimming phase cut-off	Yes
Suitable for ceiling mounting	No, Yes
Beam angle	Medium beam 21-40°
Type of control gear	Not required
Dimming depending on control gear	Yes
Style	Country House

Documents and files

Offertext

For: 662122

TXT | 251 B

Offertext

For: 682122

TXT | 251 B

Full catalog 21 / 22

PDF | 38.74 MB

Accessories

661005 - Corner bracket round type ..1005, Black Für: 662122	show
681005 - Corner bracket round type ..1005, White Für: 682122	show
90750107 - LED PAR 38	show

Additional information

Weight	N/A
Suitable for surface mounting	Yes
Protection class	I
No dim function	Yes
Connectable conductor cross section	0.75 – 2.5 mm²
Connection type	Screwed terminal
Number of poles	3
Outer diameter	135 mm
Degree of protection (IP)	IP54
Light sharing	Symmetric
Length	195 mm
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Type of wiring	Ending
Unified Glare Ratio (UGR)	1
Beam angle adjustable	Continuously variable
Suitable for wall mounting	Yes
Height	< 700 mm
Light outlet	1-seitig
Mounting method	Decke
Shape	Angular, Eckig
Luminous flux	0 – 3000 lm
Conductor cross section	2.5 mm²
Max. system power	120 W
Surface protection	Lacquered
Suitable for number of lamps	1
Voltage type	AC
Power factor	1
Adjustability	Rotating and swivelling
Light outlet	Direct
Suitable for pedestal/floor mounting	Yes
Nominal voltage	230 V
Height/depth	192.5 mm
Dimming phase cut-off	Yes
Suitable for ceiling mounting	No, Yes
Beam angle	Medium beam 21-40°
Type of control gear	Not required
Dimming depending on control gear	Yes
Style	Country House
