Article number 690251

Wall light

type ..0251

225,00

Description

Albert wall lamp 690251 in stainless steel, with opal glass. With separate mounting plate. Equipped for 1 x compact fluorescent lamp with integrated. EVG lamp 18 W, socket E27.protection class IP 44 – protection class : 80 x 400 x 115 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Documents and files
Assembly instruction

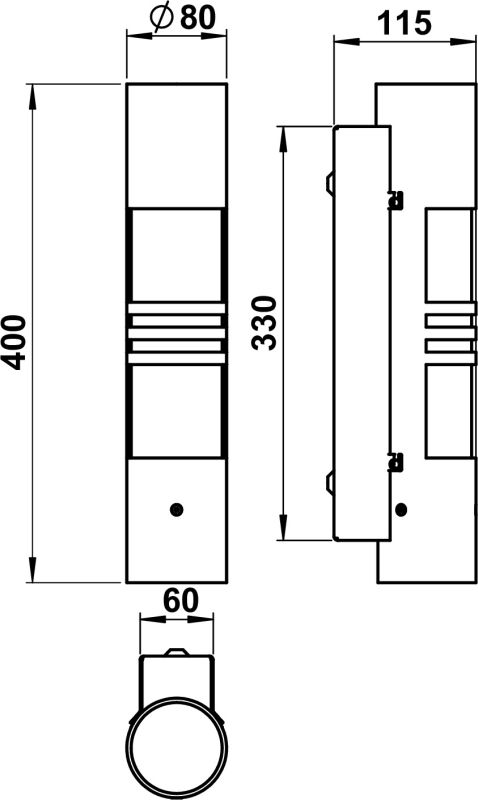

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
90750309 - LED Retrofit Tube show

Additional information

Weight 2,80 kg
Style

Edelstahl, Modern

Lamp holder

E27

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Protection class

I

Suitable for number of lamps

1

Light sharing

Symmetric

Colour housing

Stainless steel

Material housing

Stainless steel

Lamp type

LED exchangeable

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Dimming manufacturer's proprietary system

Yes

Light output

1-seitig

Height/depth

400 mm

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP44

Nominal voltage

230 V

No dim function

Yes

Outer diameter

80 mm

Beam angle

Open beam/diffuse

Light output

Direct

Suitable for lamp power

1 – 20 W

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Dimming depending on control gear

Yes

Max. system power

20 W

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Conductor cross section

2.5 mm²

Suitable for wall mounting

Yes

Mounting Type

Wand

Light type

Wandleuchte

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Surface protection housing

Untreated

Length

115 mm

Connection type

Screwed terminal

Number of poles

3

Shape

Eckig
