Article number 690505

Base luminaire

type ..0505

315,80

Specifications

Albert base luminaire 690505 in stainless steel with opal glass. For 1 x incandescent lamp A60 75W, socket E27.ready for connection with mounting plate for screwing onto a foundation or onto the ground socket type no. 690010.protection class IP 44 – protection class : d 103 x 500 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight 2,90 kg
Light output

2-seitig

Nominal voltage

230 V

Suitable for number of lamps

1

With base plate

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Style

Edelstahl, Modern

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Type of control gear

Not required

Voltage type

AC

Number of poles

3

Type of wiring

Suitable for through wiring

Height/depth

500 mm

Light sharing

Symmetric

Power factor

1

Beam angle

Open beam/diffuse

Light output

Direct/indirect

Diameter

103 mm

Max. system power

75 W

Type of luminaire

Pedestal luminaire

Protection class

I

Degree of protection (IP)

IP44

Height

< 700 mm

Housing material quality

Stainless steel 304 (V2A)

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 26 KB

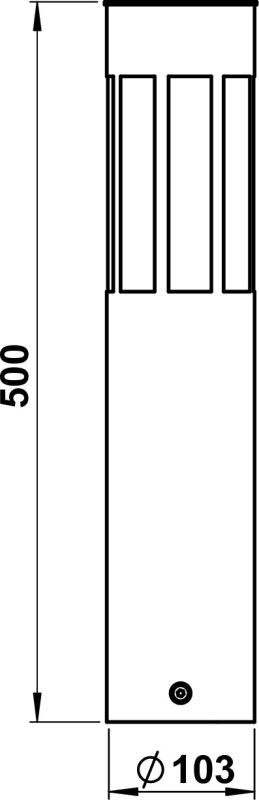

Dimensioned drawing
PDF | 18 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210281 - G 281, opal glass matt show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show
