Article number Select a color, please

Bollard light

type ..2016

370,70

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
R7s
Suitable for lamp power
0 - 80 W
Material cover
Glass transparent
Documents and files
Assembly instruction

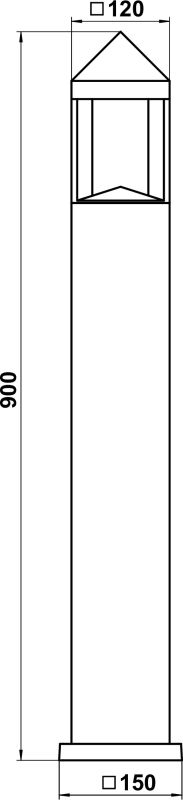

Dimensioned drawing
Offertext
For: 662016
Offertext
For: 682016
Full catalog 21 / 22
Spare parts
90220108 - G 108, borosilicate glass pane show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

With base plate

Yes

Lamp holder

R7s

Highest energy efficiency class of the exchangeable lamp

A++

Colour housing

Black, White

Material cover

Glass transparent

Nominal voltage

230 V

Voltage type

AC

Type of control gear

Not required

Surface protection

Lacquered

Material housing

Aluminium

Lamp type

HV halogen lamp

Height/depth

900 mm

Connection type

Screwed terminal

Power factor

1

Width

120 mm

Lowest energy efficiency class of the exchangeable lamp

E

Suitable for number of lamps

1

Length

120 mm

Type of wiring

Suitable for through wiring

Light sharing

Symmetric

Light type

Standleuchte

Height

700 – 1000 mm

Protection class

I

Suitable for lamp power

0 – 80 W

Max. system power

80 W

Style

Modern

Number of poles

3

Degree of protection (IP)

IP44

Light output

Indirect

Beam angle

Open beam/diffuse

Conductor cross section

2.5 mm²

Shape

Eckig
