Data sheet
Article number 690684
Wall light
type ..0687
€281,80
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

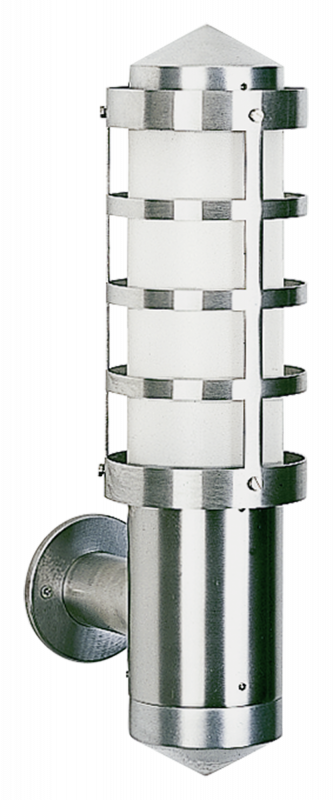

Albert wall lamp 690684
made of stainless steel with acrylic hollow glass. Equipped for 1 x lamp, socket E 27. protection class IP 44 – protection class : d 103 x 390 x 180 mm
Features
Luminaire has IP 44 protection.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

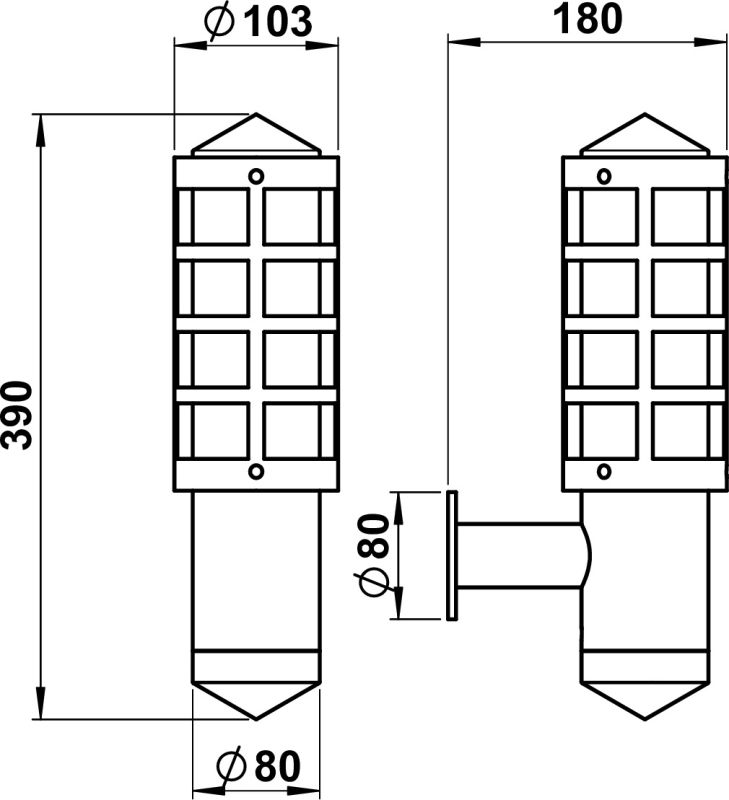

Dimensioned drawing
Full catalog 21 / 22
Additional information
| Weight | 2,10 kg |
|---|---|
| Style | Edelstahl, Modern |
| Material housing | Stainless steel |
| Material cover | Glass opal |
| Voltage type | AC |
| Type of control gear | Not required |
| Protection class | I |
| Suitable for number of lamps | 1 |
| Light sharing | Symmetric |
| Colour housing | Stainless steel |
| Lamp holder | E27 |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Suitable for surface mounting | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Light output | 1-seitig |
| Height/depth | 390 mm |
| Power factor | 1 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Degree of protection (IP) | IP44 |
| Nominal voltage | 230 V |
| No dim function | Yes |
| Dimming depending on control gear | Yes |
| Mounting Type | Wand |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Suitable for lamp power | 1 – 75 W |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Outer diameter | 103 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of wiring | Ending |
| Conductor cross section | 2.5 mm² |
| Suitable for wall mounting | Yes |
| Max. system power | 75 W |
| Light type | Wandleuchte |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Height | < 700 mm |
| Surface protection housing | Untreated |
| Length | 180 mm |
| Connection type | Screwed terminal |
| Number of poles | 3 |
| Shape | Eckig |
