Article number Select a color, please

Bollard light

type ..2066

414,10475,90

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium
Colour housing
Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
Suitable for lamp power
1 - 20 W, 1 - 75 W
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

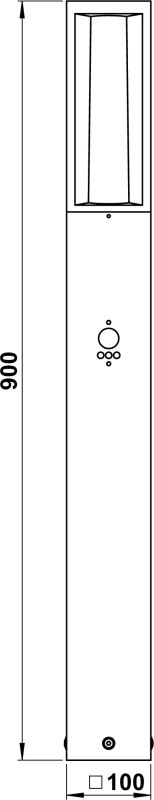

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Offertext
For: 662066
Offertext
For: 682066
Offertext
For: 692066
Full catalog 21 / 22
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
690010 - Earth mounting base type ..0010 show
690039 - Installation kit relay circuit 690039 show
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Beam angle

Open beam/diffuse

Nominal voltage

230 V

Highest energy efficiency class of the exchangeable lamp

A+

Surface protection

Lacquered

Colour rendering index CRI

80-89

Suitable for lamp power

1 – 20 W, 1 – 75 W

Height/depth

900 mm

Colour of light

White

Type of wiring

Suitable for through wiring

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

With base plate

Yes

Colour temperature

3000 K

Material cover

Glass opal

Type of control gear

Not required

With light sensor

Yes

With movement sensor

Yes

Lamp type

LED exchangeable

Suitable for number of lamps

1

Protection class

I

Colour housing

Black, Silver, White

Degree of protection (IP)

IP44

Energy efficiency class of the provided exchangeable built-in lamp

E

Material housing

Aluminium

Max. system power

20 W, 75 W

Length

100 mm

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Lowest energy efficiency class of the exchangeable lamp

E

Type of luminaire

Bollard luminaire

Voltage type

AC

Max. number of luminaires per miniature circuit breaker B16

20

Power factor

1

Coverage

90 °

Style

Modern

Light type

Standleuchte

Height

700 – 1000 mm

Max. number of luminaires per miniature circuit breaker C16

30

Light output

Direct/indirect

Width

100 mm

Light sharing

Symmetric

Light output

2-seitig
