Article number Select a color, please

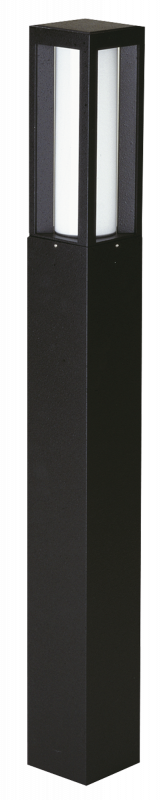

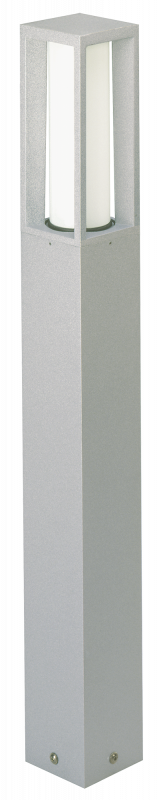

Bollard light

type ..2266

296,00340,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W, 1 - 75 W
Material cover
Glass opal
Weight N/A
Type of luminaire

Bollard luminaire

Highest energy efficiency class of the exchangeable lamp

A++

Nominal voltage

230 V

Voltage type

AC

Type of control gear

Not required

With base plate

Yes

Type of wiring

Suitable for through wiring

Surface protection

Lacquered

Height/depth

900 mm

Connection type

Screwed terminal

Power factor

1

Width

100 mm

Lowest energy efficiency class of the exchangeable lamp

E

Length

100 mm

Suitable for number of lamps

1

Light sharing

Symmetric

Conductor cross section

2.5 mm²

Light type

Standleuchte

Height

700 – 1000 mm

Protection class

I

Max. system power

20 W, 75 W

Style

Modern

Number of poles

3

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Degree of protection (IP)

IP44

Shape

Eckig

Light output

2-seitig

Documents and files
Data sheet
Assembly instruction
PDF | 92 KB

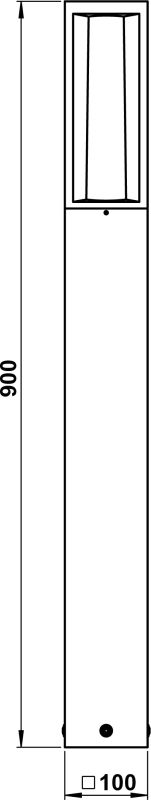

Dimensioned drawing
PDF | 105 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 662266
TXT | 327 B
Offertext
For: 682266
TXT | 321 B
Offertext
For: 692266
TXT | 305 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750309 - LED Retrofit Tube show
