Article number Select a color, please

Wall light

type ..0800

300,60

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
LED exchangeable, Other
With light source
No, Yes
Lamp holder
E27
Suitable for lamp power
1 - 100 W
Material cover
Plastic, structured
Documents and files
Assembly instruction

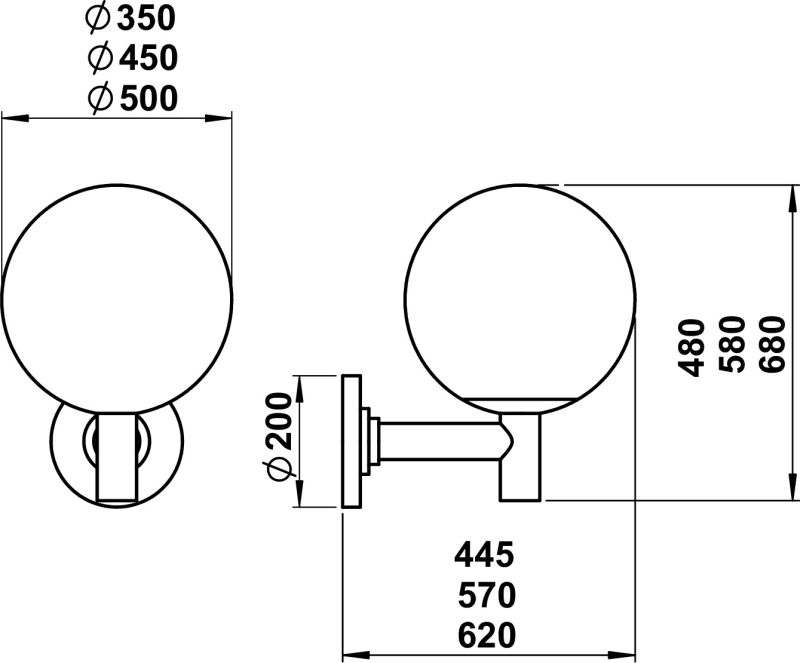

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 660800
Offertext
For: 680800
Full catalog 21 / 22
Spare parts
90260074 - G 74, sphere, opal, d = 350 mm PE show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

With control gear

No, Yes

Lamp type

LED exchangeable, Other

Suitable for number of lamps

1

Light sharing

Symmetric

Material housing

Aluminium

Colour housing

Black, White

Lamp holder

E27

Nominal voltage

230 V

Protection class

I

With light source

No, Yes

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Outer diameter

350 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Material cover

Plastic, structured

Voltage type

AC

Dimming depending on control gear

Yes

Type of control gear

LED operating device voltage-controlled, Not required

No dim function

Yes

Beam angle

Open beam/diffuse

Light output

Direct

Height/depth

480 mm

Length

445 mm

Degree of protection (IP)

IP44

Flickering value Pst LM

1

Height

< 700 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for lamp power

1 – 100 W

Max. system power

100 W

Connection type

Screwed terminal

Shape

Eckig

Mounting Type

Wand

Light type

Wandleuchte

Max. number of luminaires per miniature circuit breaker C16

30

Surface protection housing

Lacquered

Light output

1-seitig

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Max. number of luminaires per miniature circuit breaker B16

20

Exchangeable control gear

No, Yes

Colour consistency (McAdam ellipse)

SDCM3

Energy efficiency class of the provided exchangeable built-in lamp

E

Stroboscope effect value SVM

0.4
