Article number Select a color, please

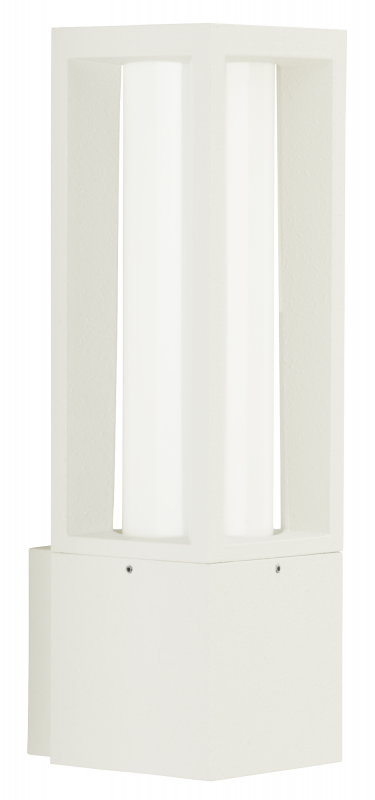

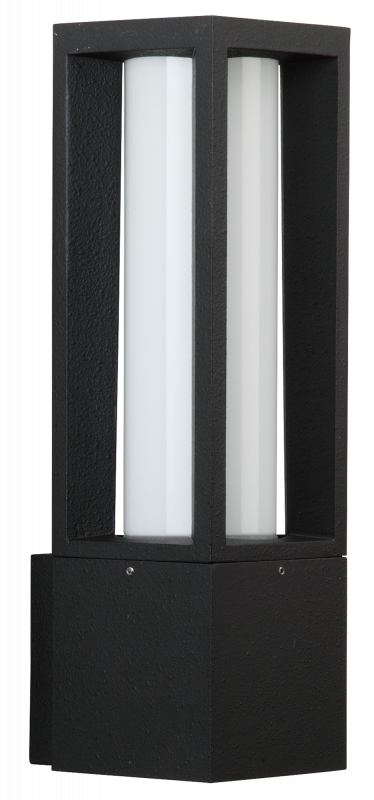

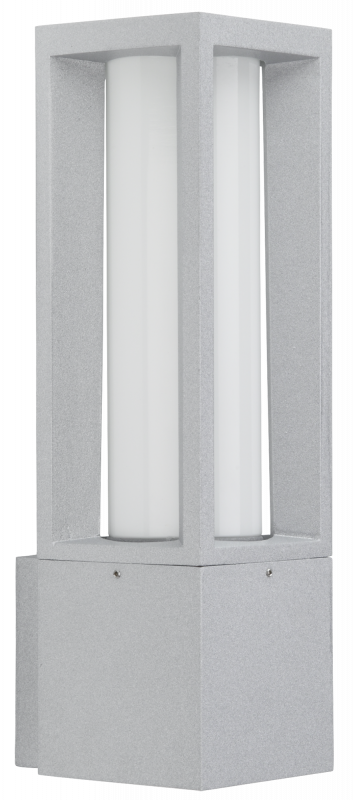

Wall light

type ..0213

228,70263,20

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Dimming manufacturer's proprietary system

Yes

Nominal voltage

230 V

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Voltage type

AC

Light sharing

Symmetric

Power factor

1

No dim function

Yes

Protection class

I

Dimming depending on control gear

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Lowest energy efficiency class of the exchangeable lamp

E

Type of control gear

Not required

Beam angle

Open beam/diffuse

Width

100 mm

Degree of protection (IP)

IP44

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

350 mm

Type of wiring

Ending

Max. system power

20 W

Connection type

Screwed terminal

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Length

130 mm

Height

< 700 mm

Light output

Direct

Unified Glare Ratio (UGR)

1

Conductor cross section

2.5 mm²

Style

Modern

Surface protection housing

Lacquered

Number of poles

3

Photobiological safety according to EN 62471

RG1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 113 KB

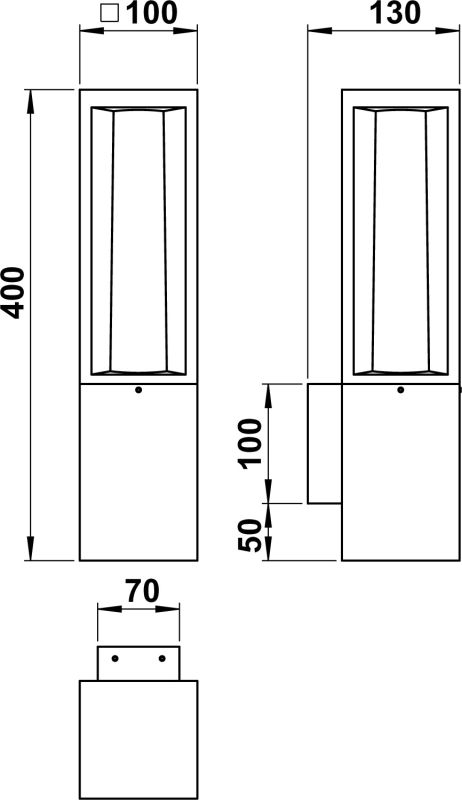

Dimensioned drawing
PDF | 103 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 660213
TXT | 245 B
Offertext
For: 680213
TXT | 245 B
Offertext
For: 690213
TXT | 224 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
681006 - Corner bracket angular type ..1006, White
Für: 680213
show
691006 - Corner bracket angular type ..1006, Stainless steel
Für: 690213
show
90750309 - LED Retrofit Tube show
