Article number Select a color, please

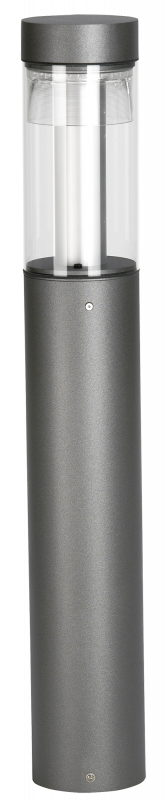

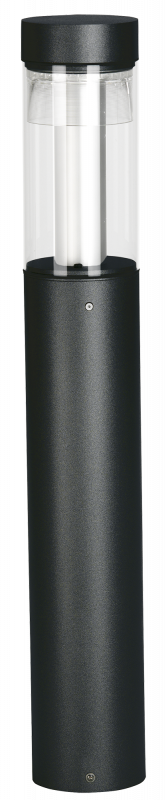

Bollard light, 180 degrees, asymmetrical

type no. 622267

726,00854,00

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
DALI control Product-Icon Luminaire can be supplied for DALI control.
Luminaire can be supplied for DALI control.
Amber LED possible Product-Icon Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
18.5 W
Rated luminous flux according to IEC 62722-2-1
2000 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Documents and files
Assembly instruction

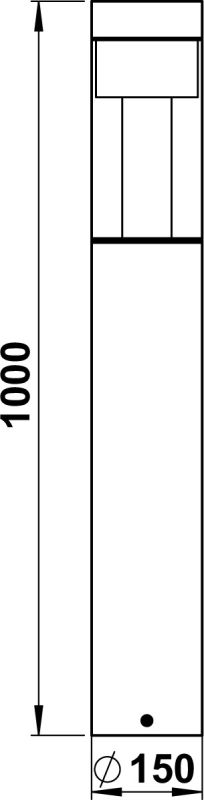

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622267
Offertext
For: 662267
Full catalog 21 / 22
Spare parts
10260401 - G-401, acrylic 150 x 3 mm, 270 mm show
Accessories
690010 - Earth mounting base type ..0010 show
690085 - Recessed housing with lockable socket outlet with earthing contact IP44 / D show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

With base plate

Yes

Voltage type

AC/DC

Type of control gear

LED operating device current-controlled

Colour temperature

3000 K

Highest energy efficiency class of the exchangeable lamp

A+

With control gear

Yes

Nominal voltage

230 V

Lamp type

LED exchangeable

With light source

Yes

Conductor cross section

2.5 mm²

Protection class

I

Material housing

Aluminium

Colour housing

Anthracite, Black

Surface protection

Lacquered

Energy efficiency class of the provided exchangeable built-in lamp

E

Suitable for lamp power

18.5 W

Power factor

0.9

Height/depth

1000 mm

Lowest energy efficiency class of the exchangeable lamp

E

Number of poles

3

Diameter

150 mm

Type of wiring

Suitable for through wiring

Material cover

Plastic, transparent

Suitable for number of lamps

1

Light output

Direct/indirect

Flickering value Pst LM

1

Rated luminous flux according to IEC 62722-2-1

2000 lm

Colour of light

White

Degree of protection (IP)

IP54

Colour rendering index CRI

80-89

Light type

Standleuchte

Height

700 – 1000 mm

Exchangeable control gear

Yes

Light sharing

Asymmetric

Impact strength

IK08

Beam angle

Open beam/diffuse

Connection type

Screwed terminal

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Max. system power

18.5 W

Light output

2-seitig

Shape

Eckig
