Article number Select a color, please

Bollard luminaire, 360 degrees, symmetrical

type ..2274

516,70594,00

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
22 W
Rated luminous flux according to IEC 62722-2-1
2500 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

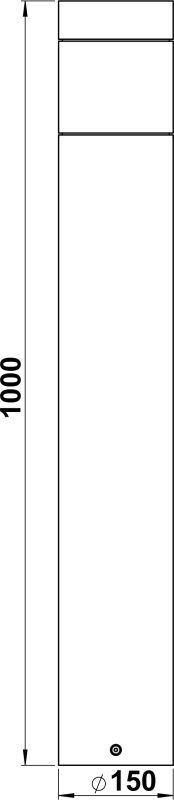

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622274
Offertext
For: 662274
Full catalog 21 / 22
Spare parts
10260505 - G-505, acrylic -tubes white show
Accessories
690010 - Earth mounting base type ..0010 show
690085 - Recessed housing with lockable socket outlet with earthing contact IP44 / D show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Colour housing

Anthracite, Black

Type of control gear

Not required

Colour temperature

3000 K

Highest energy efficiency class of the exchangeable lamp

A+

Nominal voltage

230 V

Suitable for number of lamps

1

Protection class

I

Diameter

150 mm

Impact strength

IK08

With light source

Yes

Surface protection

Lacquered

Energy efficiency class of the provided exchangeable built-in lamp

E

Suitable for lamp power

22 W

Power factor

0.8

Height/depth

1000 mm

Lowest energy efficiency class of the exchangeable lamp

E

Number of poles

3

Lamp type

LED exchangeable

Type of wiring

Suitable for through wiring

Conductor cross section

2.5 mm²

Material cover

Plastic, opal

Voltage type

AC

Material housing

Aluminium

Flickering value Pst LM

0.5

Rated life time L70/B50 at 25 °C

50000 h

Colour of light

White

Degree of protection (IP)

IP54

Colour rendering index CRI

80-89

Light type

Standleuchte

Height

700 – 1000 mm

With base plate

Yes

Light output

Direct/indirect

Max. system power

22 W

Light sharing

Symmetric

Stroboscope effect value SVM

0.6

Beam angle

Open beam/diffuse

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Light output

2-seitig

Connection type

Screwed terminal

Rated luminous flux according to IEC 62722-2-1

2500 lm

Shape

Eckig
