Article number Select a color, please

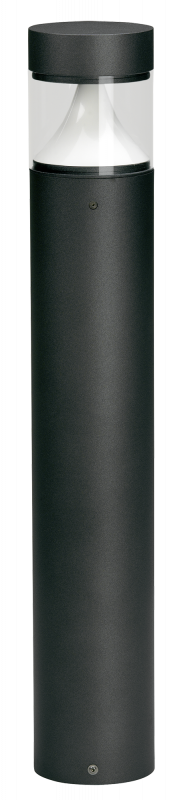

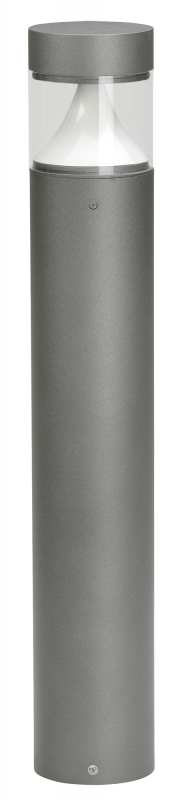

Bollard luminaire, 360 degrees, indirect symmetrical

type no. 622275

519,10596,90

Clear
Features
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
22 W
Rated luminous flux according to IEC 62722-2-1
2500 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Documents and files
Assembly instruction

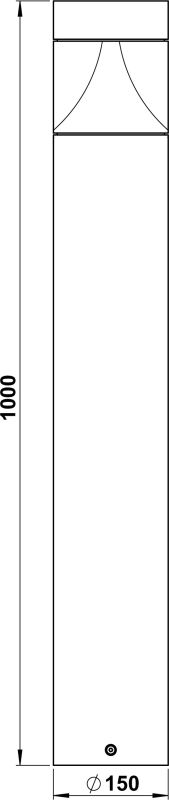

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622275
Offertext
For: 662275
Full catalog 21 / 22
Spare parts
10260506 - G-506, acrylic -tubes clear show
Accessories
690011 - Earth mounting base type ..0011 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Protection class

I

Material cover

Plastic, transparent

Voltage type

AC

Type of control gear

Not required

Colour temperature

3000 K

Highest energy efficiency class of the exchangeable lamp

A+

Nominal voltage

230 V

Lamp type

LED exchangeable

With light source

Yes

With base plate

Yes

Material housing

Aluminium

Conductor cross section

2.5 mm²

Colour housing

Anthracite, Black

Surface protection

Lacquered

Energy efficiency class of the provided exchangeable built-in lamp

E

Suitable for lamp power

22 W

Power factor

0.8

Height/depth

1000 mm

Lowest energy efficiency class of the exchangeable lamp

E

Number of poles

3

Diameter

150 mm

Type of wiring

Suitable for through wiring

Suitable for number of lamps

1

Impact strength

IK08

Max. system power

22 W

Connection type

Screwed terminal

Rated luminous flux according to IEC 62722-2-1

2500 lm

Colour of light

White

Degree of protection (IP)

IP54

Colour rendering index CRI

80-89

Shape

Eckig

Light type

Standleuchte

Height

700 – 1000 mm

Rated life time L70/B50 at 25 °C

50000 h

Light sharing

Symmetric

Light output

Indirect

Beam angle

Open beam/diffuse

Flickering value Pst LM

0.5

Stroboscope effect value SVM

0.6

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30
