Data sheet
Article number
Select a color, please
Pole light
type ..0877
€909,50 – €1.045,80
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
28 W
Rated luminous flux according to IEC 62722-2-1
2100 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Pole included
Ja
Documents and files
Assembly instruction

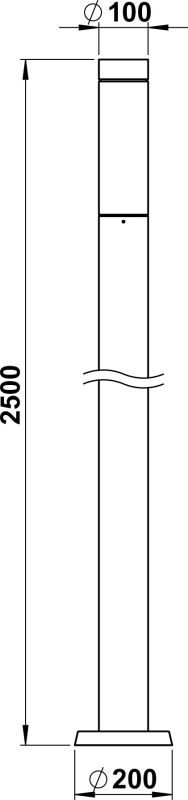

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620877
Offertext
For: 660877
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Mounting Type | Post top |
| Suitable for number of lamps | 1 |
| Material housing | Aluminium |
| Surface protection | Lacquered |
| Colour housing | Anthracite, Black |
| Nominal voltage | 230 V |
| Voltage type | AC/DC |
| Type of control gear | LED operating device current-controlled |
| With control gear | Yes |
| Exchangeable control gear | Yes |
| Lamp type | LED exchangeable |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Light distributor | Reflector |
| No dim function | Yes |
| With light source | Yes |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Connection type | Screwed terminal |
| Material cover | Plastic, transparent |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Cable length | 0 m |
| Suitable for lamp power | 28 W |
| Max. system power | 28 W |
| Colour temperature | 3000 K |
| Light type | Standleuchte |
| Colour rendering index CRI | 80-89 |
| Height | > 1700 mm |
| Pole included | Ja |
| Colour of light | White |
| Rated luminous flux according to IEC 62722-2-1 | 2100 lm |
| Conductor cross section | 2.5 mm² |
| Type of wiring | Suitable for through wiring |
| Diameter | 510 mm |
| Height/depth | 2400 mm |
| Power factor | 0.9 |
| Degree of protection (IP) | IP54 |
| Number of poles | 3 |
| Shape | Eckig |
