Article number 692149

Ground recessed spotlight

type ..2149

291,30

Description

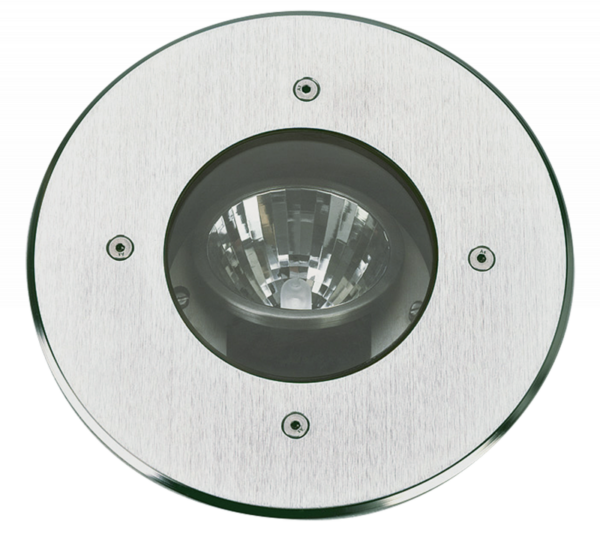

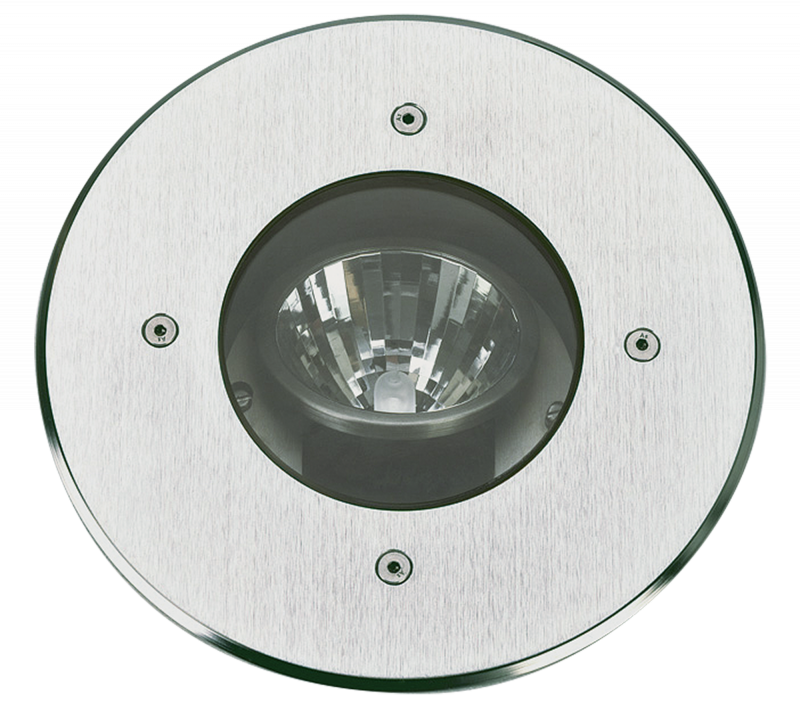

Albert-ground recessed spotlight 692149 – 30 degree swivelling – made of cast aluminium with round stainless steel cover, safety glass clear. Fitted for 1 x halogen bulb QT 14 40 W, socket G9.one blind and one cable gland each for mains connection lines d 6 – 12 IP 67 – protection class I. For pressure loads up to 1000 kg. Dimensions: d 220 x 130 mm The glass surface reaches a temperature of max. 140 degrees C.

Material housing
Aluminium
Colour housing
Silver
Lamp type
HV halogen lamp
Suitable for lamp power
0 - 60 W
Material cover
Glass transparent
Documents and files
Assembly instruction

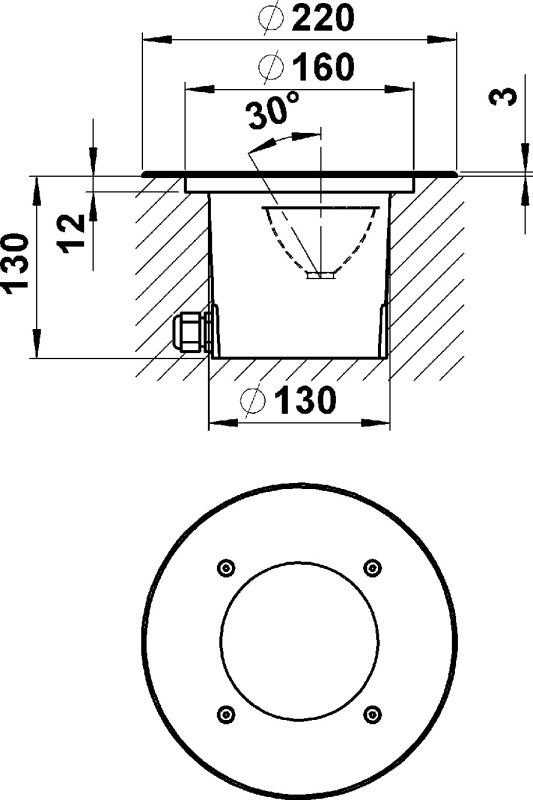

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220369 - G 369, single-pane safety glass show
Accessories
90750103 - LED Pin show

Additional information

Weight 2.40 kg
Lamp type

HV halogen lamp

No dim function

Yes

Material cover

Glass transparent

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Not required

Height/depth

130 mm

Beam angle

Medium beam 21-40°

Highest energy efficiency class of the exchangeable lamp

A++

Outer diameter

220 mm

Built-in height/depth

130 mm

Built-in diameter

130 mm

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Adjustable

Yes

Light distributor

Reflector

Suitable for number of lamps

1

Colour housing

Silver

Max. load

1000 kg

Over rollable

Yes

Number of poles

3

Height

< 700 mm

Material housing

Aluminium

Impact strength

IK08

Beam angle adjustable

Continuously variable

Max. surface temperature

35 °C

Belastbarkeit

0 bis 2000 kg

Conductor cross section

2.5 mm²

Power factor

1

Connection type

Screwed terminal

Light sharing

Symmetric

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP67

Protection class

I

Suitable for lamp power

0 – 60 W

Max. system power

60 W

Colour of light

White

Shape

Eckig

Type of wiring

Suitable for through wiring
