Article number Select a color, please

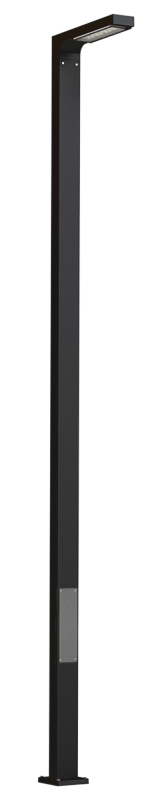

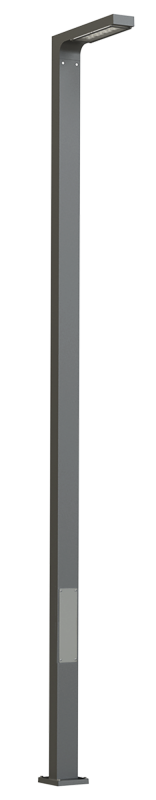

Pole light

type ..0865

1.482,501.704,80

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
50 W
Rated luminous flux according to IEC 62722-2-1
6165 lm
Colour temperature
3000 K
Material cover
Without cover
Pole included
Ja
Documents and files
Assembly instruction

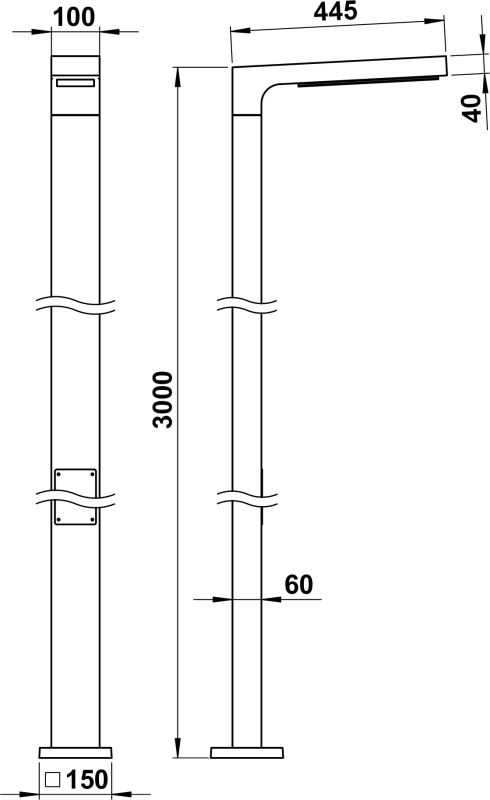

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620865
Offertext
For: 660865
Full catalog 21 / 22
Spare parts
90270479 - G 479, acrylic glass pane white show
Accessories
690011 - Earth mounting base type ..0011 show

Additional information

Weight N/A
Mounting method

Post top

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Anthracite, Black

Material cover

Without cover

Voltage type

AC/DC

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

Yes

Energy efficiency class of the provided exchangeable built-in lamp

E

Nominal voltage

230 V

Lamp type

LED exchangeable

No dim function

Yes

Light distributor

Refractor lens

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A+

Rated luminous flux according to IEC 62722-2-1

6165 lm

Colour of light

White

Colour temperature

3000 K

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Colour rendering index CRI

80-89

Cable length

0 m

Suitable for lamp power

50 W

Max. system power

54 W

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP54

Power factor

0.9

Width

270 mm

Height/depth

3000 mm

Length

350 mm

Type of wiring

Suitable for through wiring

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Light type

Standleuchte

Height

> 1700 mm

Pole included

Ja

Shape

Eckig
