Data sheet
Article number
Select a color, please

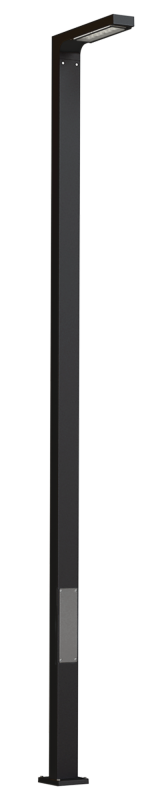

Pole light
type ..0815
€1.482,50 – €1.704,80
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
50 W
Rated luminous flux according to IEC 62722-2-1
6165 lm
Colour temperature
3000 K
Material cover
Without cover
Pole included
Ja, Yes
Documents and files
Assembly instruction

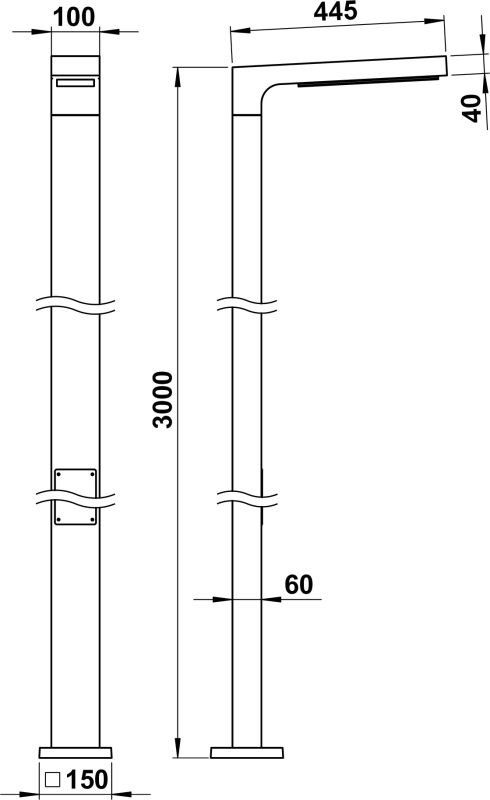

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620815
Offertext
For: 660815
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Mounting Type | Post top |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Material housing | Aluminium |
| Surface protection | Lacquered |
| Colour housing | Anthracite, Black |
| Material cover | Without cover |
| Voltage type | AC/DC |
| Type of control gear | LED operating device current-controlled |
| With control gear | Yes |
| Exchangeable control gear | Yes |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Nominal voltage | 230 V |
| Lamp type | LED exchangeable |
| No dim function | Yes |
| Light distributor | Refractor lens |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Rated luminous flux according to IEC 62722-2-1 | 6165 lm |
| Colour of light | White |
| Colour temperature | 3000 K |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Colour rendering index CRI | 80-89 |
| Cable length | 0 m |
| Suitable for lamp power | 50 W |
| Max. system power | 54 W |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP54 |
| Power factor | 0.9 |
| Width | 270 mm |
| Height/depth | 3000 mm |
| Length | 350 mm |
| Type of wiring | Suitable for through wiring |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Light type | Standleuchte |
| Height | > 1700 mm |
| Pole included | Ja, Yes |
| Shape | Angular, Eckig |
