Article number 692189

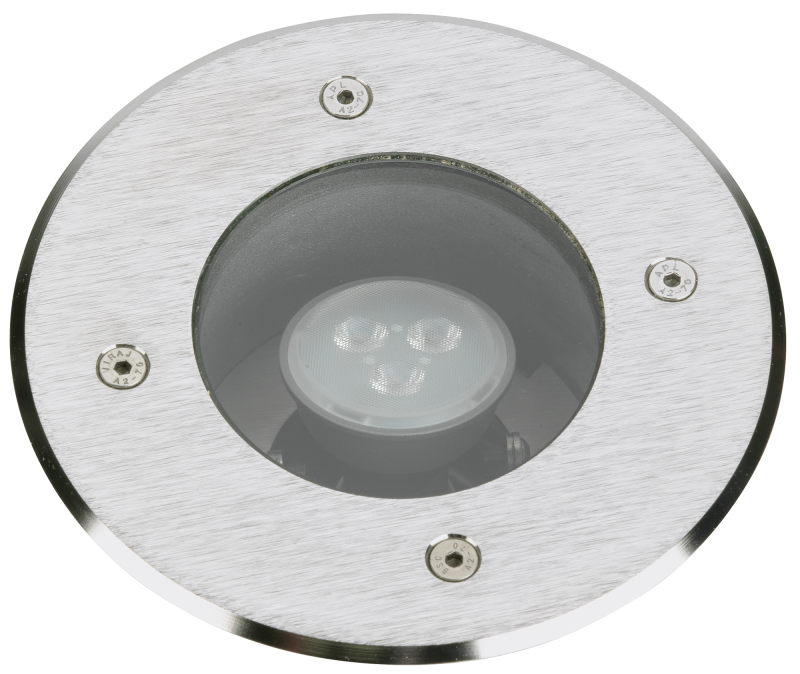

Ground recessed spotlight

type ..2189

239,90

Description

Ground recessed spotlight type no. 2189, colour: stainless steel, 1 x PAR 16 50 W, GU10, A++ to E, swivels up to 30 degrees, symmetric and asymmetric light distribution possible, recessed housing cast aluminium, cover stainless steel, safety glass clear, load capacity up to 1000 kg

Features
IP67 Product-Icon The luminaire has IP 67 protection.
The luminaire has IP 67 protection.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Silver
Lamp type
HV halogen lamp
Suitable for lamp power
50 W
Material cover
Glass transparent
Documents and files
Assembly instruction

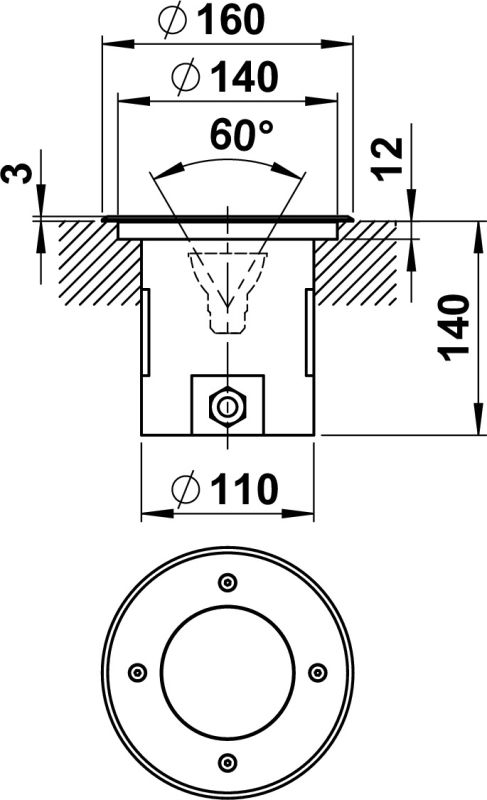

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220315 - G 315, glass / stepped glass ESG show
Accessories
90750104 - LED PAR 16 warm to dim show
90750105 - LED PAR 16 show

Additional information

Weight 1,80 kg
Connection type

Screwed terminal

Voltage type

AC

Material cover

Glass transparent

Load capacity

0 bis 2000 kg

Dimming phase cut-off

Yes

Type of control gear

Not required

Height/depth

140 mm

Beam angle

Medium beam 21-40°

Highest energy efficiency class of the exchangeable lamp

A++

Outer diameter

160 mm

Built-in diameter

130 mm

Built-in height/depth

140 mm

Dimming manufacturer's proprietary system

Yes

Nominal voltage

230 V

Adjustable

Yes

Suitable for number of lamps

1

Colour housing

Silver

No dim function

Yes

Number of poles

3

Height

< 700 mm

Material housing

Aluminium

Max. surface temperature

35 °C

Lamp type

HV halogen lamp

Impact strength

IK08

Over rollable

Yes

Beam angle adjustable

Continuously variable

Conductor cross section

2.5 mm²

Power factor

1

Max. load

1000 kg

Light sharing

Symmetric

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP67

Protection class

I

Suitable for lamp power

50 W

Max. system power

50 W

Colour of light

White

Type of wiring

Suitable for through wiring

Shape

Eckig
