Article number 696000

House number light

type ..6000

This product is no longer in our assortment.
You can find a successor of this product listed below.

Nicht lieferbar

Description

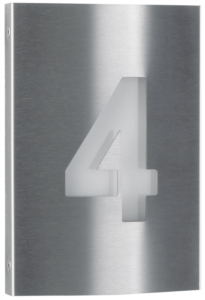

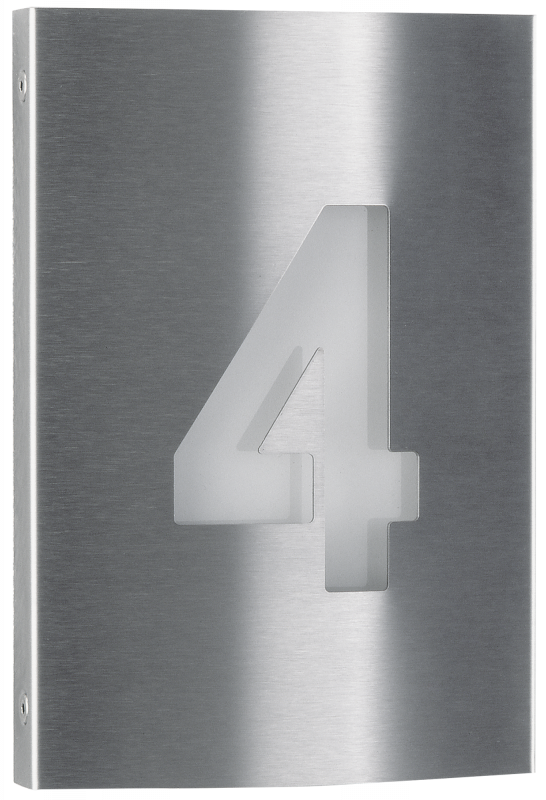

Albert house number light 696000 – 1-digit – with lasered house number according to customer specification, made of stainless steel with opal backlit field. Equipped with LED unit 1,0 Watt protection class IP 44 – protection class : 140 x 200 x 35 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
1 W
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

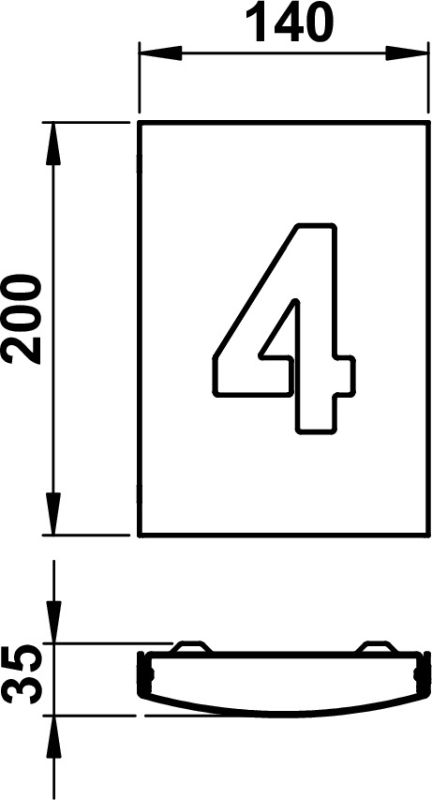

Dimensioned drawing
Full catalog 21 / 22
Successor
696012 - House number light type ..6012 show

Additional information

Weight 0,90 kg
Surface protection housing

Untreated

With light source

Yes

Material housing

Stainless steel

Voltage type

AC

Suitable for number of lamps

1

With control gear

Yes

Material cover

Glass opal

Colour housing

Stainless steel

Type of control gear

LED operating device voltage-controlled

Light output

1-seitig

No dim function

Yes

Mounting Type

Wand

Suitable for lamp power

1 W

Max. system power

1 W

Colour temperature

3000 K

Colour rendering index CRI

80-89

Power factor

0.9

Width

140 mm

Height/depth

200 mm

Suitable for surface mounting

Yes

Length

35 mm

Type of wiring

Ending

Lamp type

LED exchangeable

Nominal voltage

230 V

Max. number of luminaires per miniature circuit breaker C16

30

Number of poles

3

Dimming depending on control gear

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

E

Unified Glare Ratio (UGR)

1

Colour consistency (McAdam ellipse)

SDCM3

Colour of light

White

Height

< 700 mm

Suitable for wall mounting

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Exchangeable control gear

Yes

Stroboscope effect value SVM

0.4

Conductor cross section

2.5 mm²

Photobiological safety according to EN 62471

RG1

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Flickering value Pst LM

1

Connection type

Screwed terminal

Degree of protection (IP)

IP44

Protection class

I

Shape

Eckig
