Article number Select a color, please

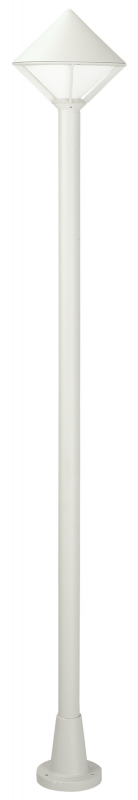

Pole light

type ..2032

391,20

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Pole included
Ja
Documents and files
Assembly instruction

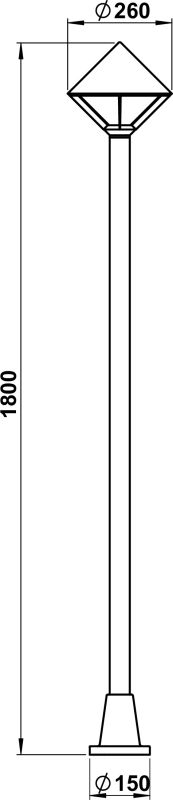

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662032
Offertext
For: 682032
Full catalog 21 / 22
Spare parts
90210132 - G 132, glass, opal matt show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Mounting Type

Post top

Lamp type

HV halogen lamp

Dimming phase cut-on

Yes

Suitable for number of lamps

1

Lamp holder

E27

Dimming phase cut-off

Yes

Material cover

Glass opal

Nominal voltage

230 V

Voltage type

AC

Degree of protection (IP)

IP44

Colour housing

Black, White

Type of control gear

Not required

Surface protection

Lacquered

Material housing

Aluminium

Height

> 1700 mm

Height/depth

1800 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. system power

75 W

Protection class

I

No dim function

Yes

Pole included

Ja

Power factor

1

Suitable for lamp power

1 – 75 W

Cable length

0 m

Connection type

Screwed terminal

Light type

Standleuchte

Type of wiring

Suitable for through wiring

Diameter

260 mm

Style

Modern

Number of poles

3

Conductor cross section

2.5 mm²

Shape

Eckig
