Data sheet
Article number 696300
Wall and ceiling light
type ..6300
€299,20
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

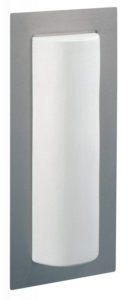

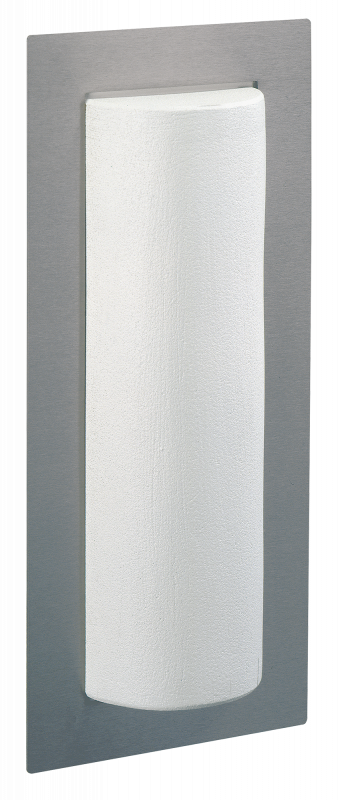

Albert wall and ceiling light 696300
made of stainless steel with opal glass, with mounting plate made of cast aluminium.1 x LED 16 W, warm white 3000 K, 1600 IP 44 – protection class : 350 x 150 x 65 mm
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

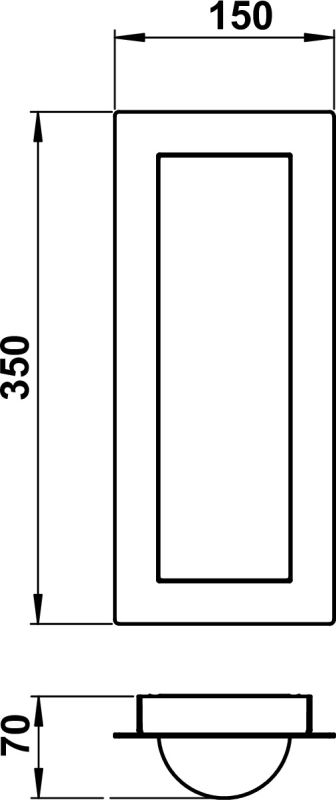

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
| 90210350 - G 350, glass opal matt | show |
Additional information
| Weight | 2,00 kg |
|---|---|
| Colour housing | Stainless steel |
| No dim function | Yes |
| Type of control gear | LED operating device voltage-controlled |
| Nominal voltage | 230 V |
| Suitable for number of lamps | 1 |
| Voltage type | AC |
| Material housing | Stainless steel |
| With light source | Yes |
| Lamp type | LED exchangeable |
| Material cover | Glass opal |
| Width | 150 mm |
| Colour rendering index CRI | 80-89 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Light sharing | Symmetric |
| Height/depth | 350 mm |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Dimming depending on control gear | Yes |
| Power factor | 0.9 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Colour of light | White |
| Rated luminous flux according to IEC 62722-2-1 | 1600 lm |
| Dimming phase cut-off | Yes |
| Colour temperature | 3000 K |
| Beam angle | Open beam/diffuse |
| Stroboscope effect value SVM | 0.4 |
| Number of poles | 3 |
| Photobiological safety according to EN 62471 | RG1 |
| Mounting Type | Decke, Wand |
| Light output | 1-seitig |
| Height | < 700 mm |
| Type of wiring | Ending |
| Surface protection housing | Untreated |
| Unified Glare Ratio (UGR) | 1 |
| Suitable for lamp power | 16 W |
| Suitable for wall mounting | Yes |
| Light output | Direct |
| Degree of protection (IP) | IP44 |
| Style | Edelstahl, Modern |
| Max. system power | 16 W |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Protection class | I |
| Conductor cross section | 2.5 mm² |
| Length | 70 mm |
| Connection type | Screwed terminal |
| Shape | Eckig |
