Article number Select a color, please

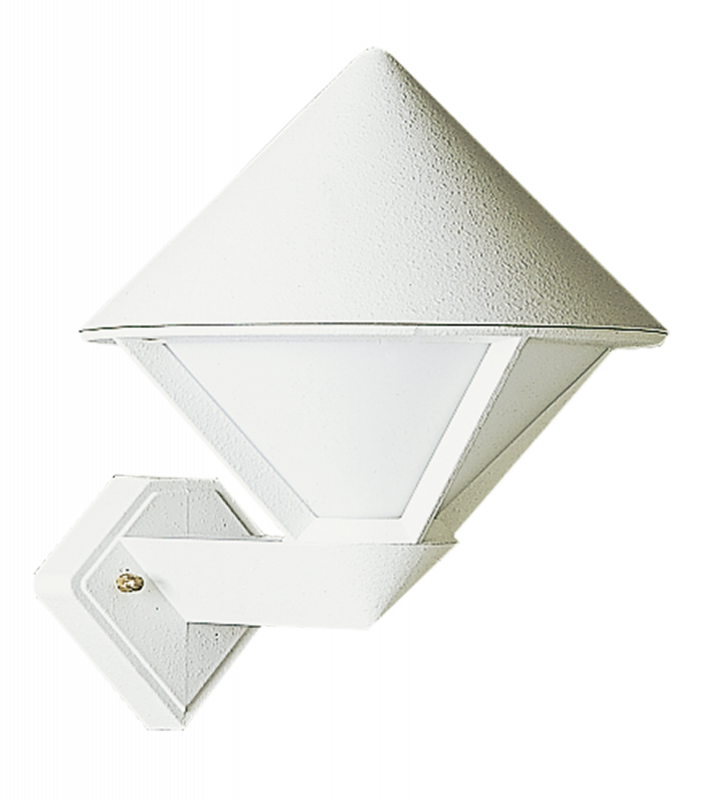

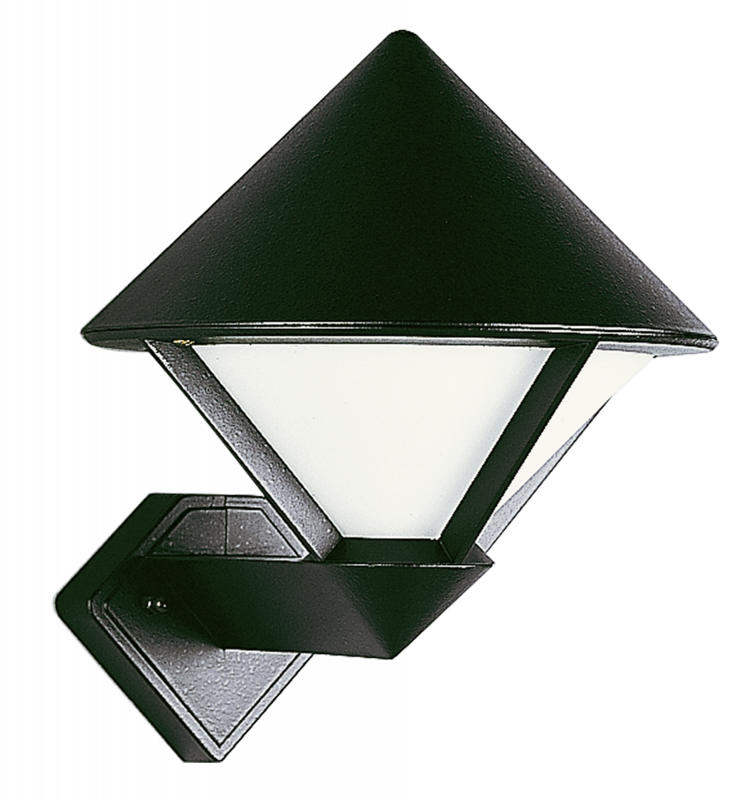

Wall light

type ..0616

184,50

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Nominal voltage

230 V

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Voltage type

AC

Light sharing

Symmetric

Power factor

1

Dimming manufacturer's proprietary system

Yes

Suitable for number of lamps

1

Protection class

I

Dimming depending on control gear

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Lowest energy efficiency class of the exchangeable lamp

E

Type of control gear

Not required

No dim function

Yes

Beam angle

Open beam/diffuse

Height

< 700 mm

Light output

Direct

Height/depth

300 mm

Degree of protection (IP)

IP44

Highest energy efficiency class of the exchangeable lamp

A++

Length

295 mm

Type of wiring

Ending

Max. system power

75 W

Connection type

Screwed terminal

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Outer diameter

260 mm

Unified Glare Ratio (UGR)

1

Conductor cross section

2.5 mm²

Style

Edelstahl, Modern

Surface protection housing

Lacquered

Number of poles

3

Photobiological safety according to EN 62471

RG1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 26 KB

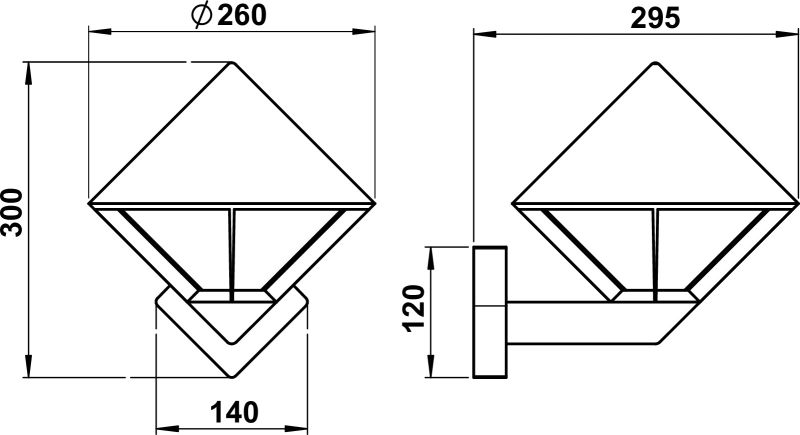

Dimensioned drawing
PDF | 28 KB
Light distribution curve - Eulumdat/LDT
LDT | 1 KB
Offertext
For: 660616
TXT | 201 B
Offertext
For: 680616
TXT | 201 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210132 - G 132, glass, opal matt show
Accessories
90750100 - LED Retrofit Classic show
