Article number Select a color, please

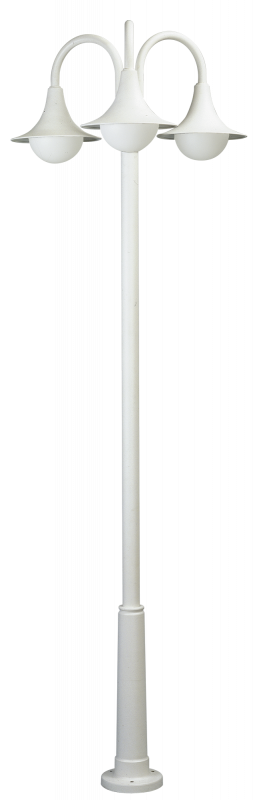

Pole light 3-light

type ..2073

987,30

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 225 W
Material cover
Glass opal
Pole included
Ja
Documents and files
Assembly instruction

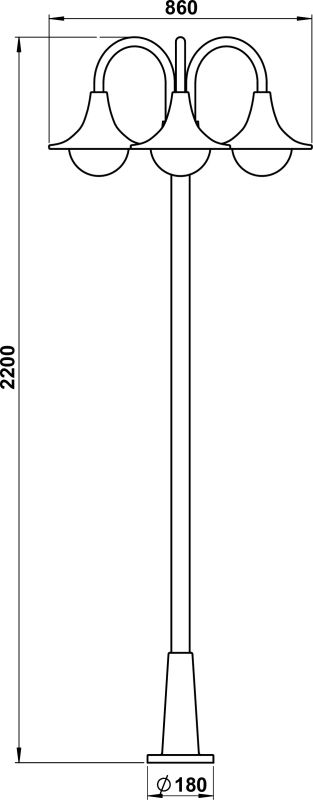

Dimensioned drawing
Offertext
For: 662073
Offertext
For: 682073
Full catalog 21 / 22
Spare parts
90210147 - G 147, glass opal matt, d = 220 mm show
Accessories
690011 - Earth mounting base type ..0011 show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Mounting Type

Post top

Material cover

Glass opal

Nominal voltage

230 V

Voltage type

AC

Degree of protection (IP)

IP44

Colour housing

Black, White

Type of control gear

Not required

Surface protection

Lacquered

Material housing

Aluminium

Height

> 1700 mm

Dimming phase cut-off

Yes

Lamp type

HV halogen lamp

Dimming phase cut-on

Yes

Suitable for number of lamps

3

Lamp holder

E27

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for lamp power

1 – 225 W

Cable length

0 m

Connection type

Screwed terminal

Light type

Standleuchte

Type of wiring

Suitable for through wiring

Diameter

860 mm

Style

Modern

Number of poles

3

Conductor cross section

2.5 mm²

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. system power

225 W

Protection class

I

No dim function

Yes

Pole included

Ja

Power factor

1

Height/depth

2200 mm

Shape

Eckig
