Data sheet
Article number
Select a color, please

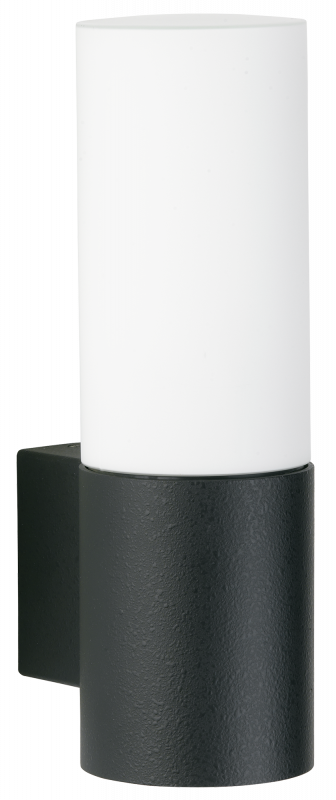

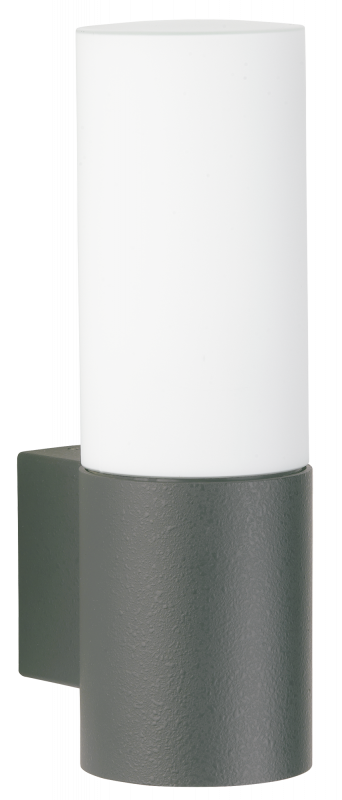

Wall light
type ..0377
€232,50 – €267,30
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Light sharing | Asymmetric |
| Power factor | 1 |
| Max. system power | 20 W |
| Number of poles | 3 |
| Degree of protection (IP) | IP54 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Type of wiring | Ending |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Shape | Eckig |
| Height | < 700 mm |
| Light outlet | 1-seitig |
| Light type | Wandleuchte |

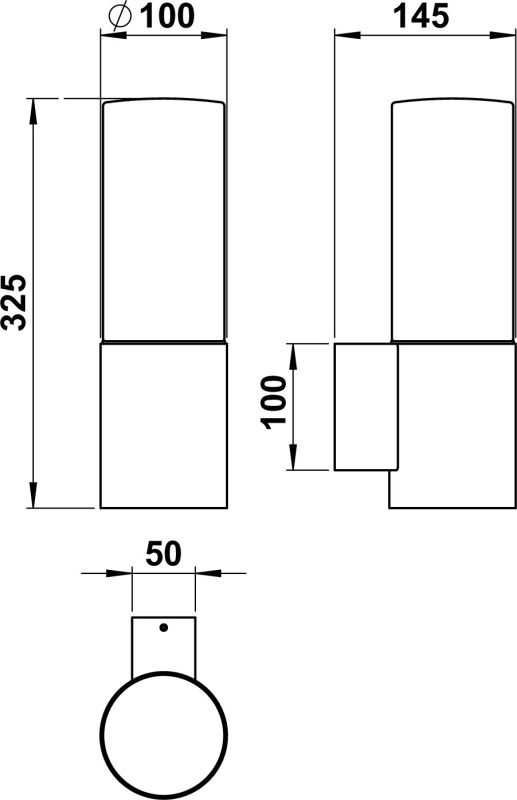

| Height/depth | 325 mm |
| Mounting method | Wand |
| Protection class | I |
| Light outlet | Direct |
| Beam angle | Open beam/diffuse |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Length | 145 mm |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Surface protection housing | Lacquered |
| Outer diameter | 100 mm |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Voltage type | AC |
| No dim function | Yes |
| Suitable for number of lamps | 1 |
| Suitable for surface mounting | Yes |
| Dimming depending on control gear | Yes |
| Dimming phase cut-off | Yes |
| Style | Modern |
Documents and files
Spare parts
| 90210281 - G 281, opal glass matt | show |
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Light sharing | Asymmetric |
| Power factor | 1 |
| Max. system power | 20 W |
| Number of poles | 3 |
| Degree of protection (IP) | IP54 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Type of wiring | Ending |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Shape | Eckig |
| Height | < 700 mm |
| Light outlet | 1-seitig |
| Light type | Wandleuchte |
| Height/depth | 325 mm |
| Mounting method | Wand |
| Protection class | I |
| Light outlet | Direct |
| Beam angle | Open beam/diffuse |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Length | 145 mm |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Surface protection housing | Lacquered |
| Outer diameter | 100 mm |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Voltage type | AC |
| No dim function | Yes |
| Suitable for number of lamps | 1 |
| Suitable for surface mounting | Yes |
| Dimming depending on control gear | Yes |
| Dimming phase cut-off | Yes |
| Style | Modern |
