Article number Select a color, please

Wall light

type ..0277

251,60289,40

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Degree of protection (IP)

IP54

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Length

145 mm

Voltage type

AC

With control gear

Yes

Light output

Direct

Colour rendering index CRI

80-89

Conductor cross section

2.5 mm²

Max. system power

10 W

Outer diameter

100 mm

Height/depth

325 mm

Dimming phase cut-off

Yes

Height

< 700 mm

Shape

Eckig

Colour consistency (McAdam ellipse)

SDCM3

Light sharing

Asymmetric

Energy efficiency class of the provided exchangeable built-in lamp

E

Beam angle

Open beam/diffuse

Number of poles

3

Light output

1-seitig

Mounting Type

Wand

Dimming depending on control gear

Yes

Surface protection housing

Lacquered

Type of wiring

Ending

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Protection class

I

Power factor

0.9

Connection type

Screwed terminal

Colour of light

White

No dim function

Yes

Style

Modern

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Exchangeable control gear

No, Yes

Photobiological safety according to EN 62471

RG1

Stroboscope effect value SVM

0.4

Light type

Wandleuchte

Unified Glare Ratio (UGR)

1

Documents and files
Data sheet
Assembly instruction
PDF | 71 KB

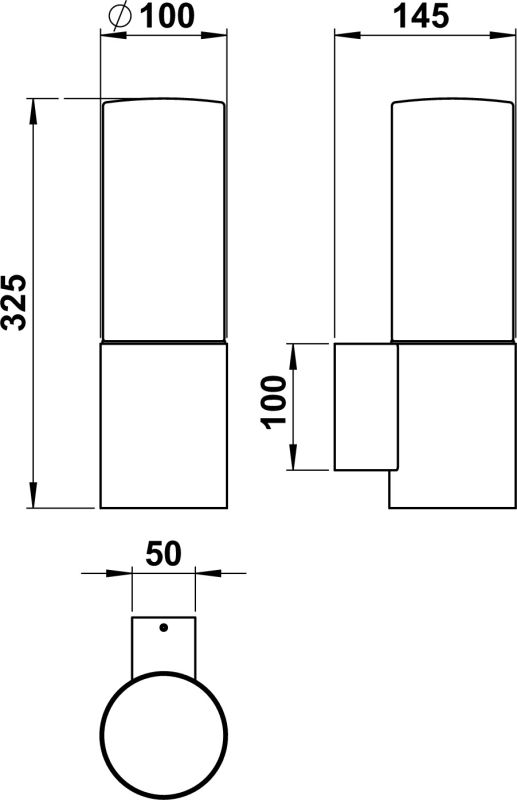

Dimensioned drawing
PDF | 60 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 620277
TXT | 181 B
Offertext
For: 660277
TXT | 176 B
Offertext
For: 680277
TXT | 176 B
Offertext
For: 690277
TXT | 177 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210281 - G 281, opal glass matt show
Accessories
621002 - Corner bracket type ..1002, Anthracite
Für: 620277
show
661002 - Corner bracket type ..1002, Black
Für: 660277
show
681002 - Corner bracket type ..1002, White
Für: 680277
show
691002 - Corner bracket type ..1002, Stainless steel
Für: 690277
show
