Data sheet
Article number
Select a color, please
Base luminaire
type ..0521
€256,00 – €286,20
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing

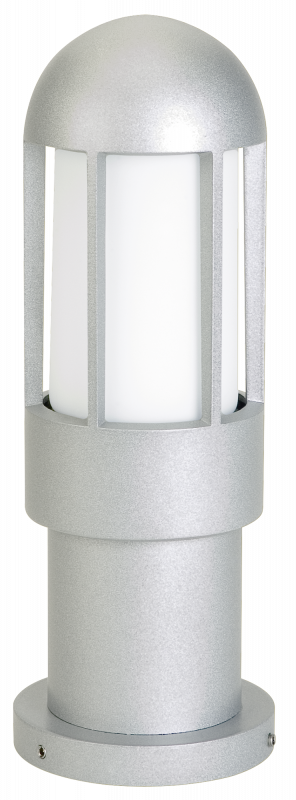

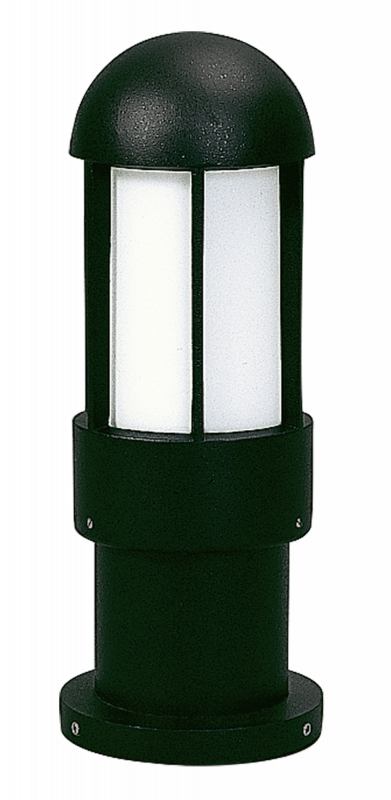

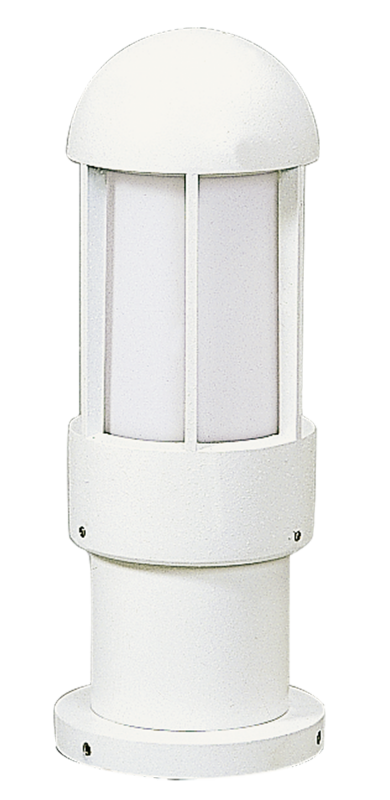

Black, Silver, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Type of luminaire | Pedestal luminaire |
| Suitable for number of lamps | 1 |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Surface protection | Lacquered |

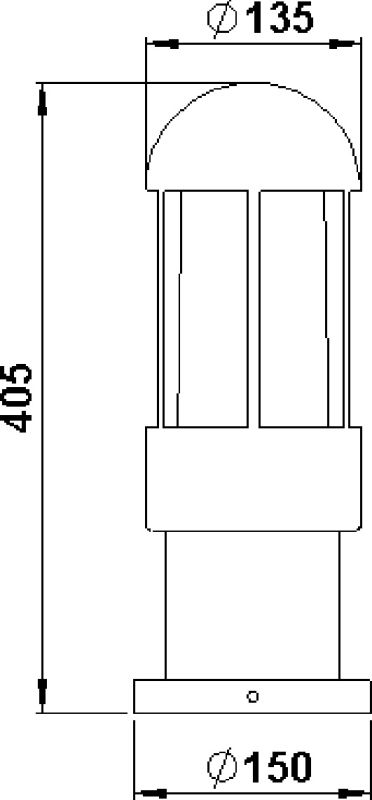

| Width | 150 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Height/depth | 405 mm |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Type of wiring | Suitable for through wiring |
| With base plate | Yes |
| Diameter | 135 mm |
| Light output | Direct/indirect |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Height | < 700 mm |
| Style | Modern |
| Light sharing | Symmetric |
| Max. system power | 75 W |
| Beam angle | Open beam/diffuse |
| Power factor | 1 |
| Light output | 2-seitig |
| Shape | Eckig |
