Article number Select a color, please

Recessed ceiling spotlight

type ..2129

Nicht lieferbar

Clear
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
50 W
Material cover
Glass transparent
Weight N/A
Nominal voltage

230 V

Outer diameter

120 mm

Suitable for pedestal/floor mounting

Yes

Adjustability

Not adjustable

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

Yes

Surface protection

Lacquered

Degree of protection (IP)

IP23

Dimming depending on control gear

Yes

Suitable for number of lamps

1

Voltage type

AC

Type of control gear

Not required

Beam angle

Medium beam 21-40°

Dimming phase cut-off

Yes

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Max. system power

50 W

Height/depth

9 mm

Built-in height/depth

100 mm

No dim function

Yes

Number of poles

3

Light sharing

Symmetric

Conductor cross section

2.5 mm²

Light output

Direct

Connection type

Screwed terminal

Connectable conductor cross section

0.75 – 2.5 mm²

Type of wiring

Ending

Power factor

1

Luminous flux

0 – 3000 lm

Shape

Angular, Eckig

Mounting Type

Decke

Light output

1-seitig

Height

< 700 mm

Built-in diameter

88 mm

Unified Glare Ratio (UGR)

1

Documents and files
Data sheet
Assembly instruction
PDF | 29 KB

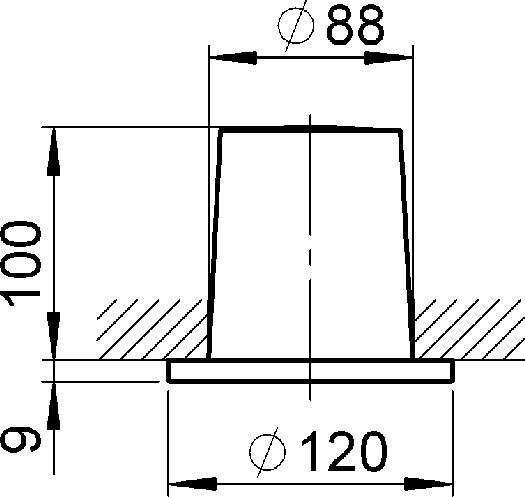

Dimensioned drawing
PDF | 8 KB
Light distribution curve
LDT | 2 KB
Offertext
For: 662129
TXT | 224 B
Offertext
For: 682129
TXT | 211 B
Full catalog 21 / 22
PDF | 39 MB
