Article number Select a color, please

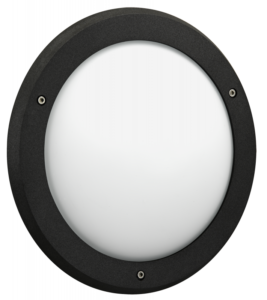

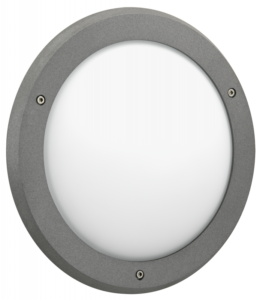

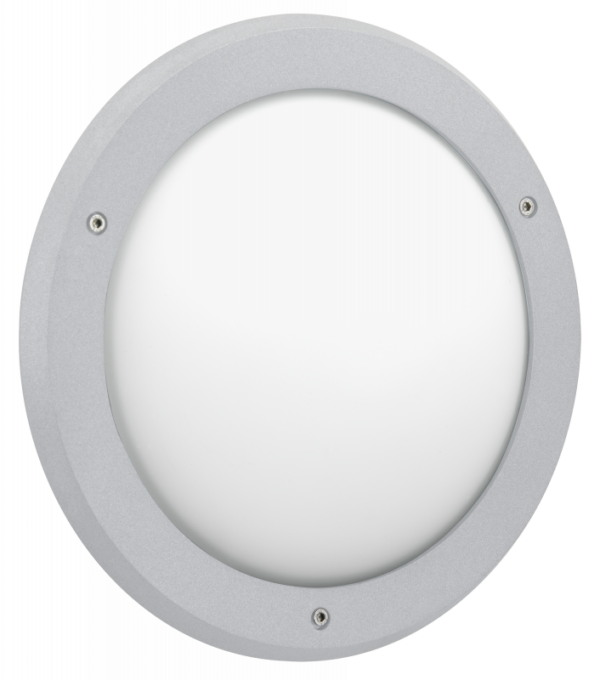

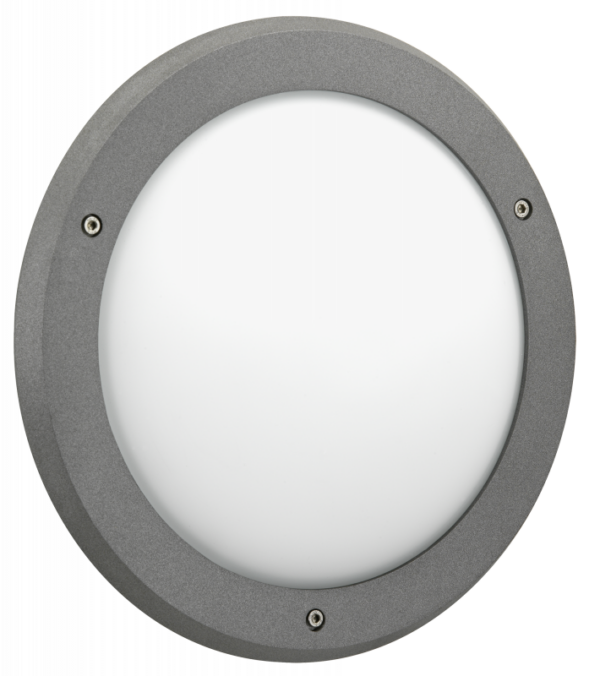

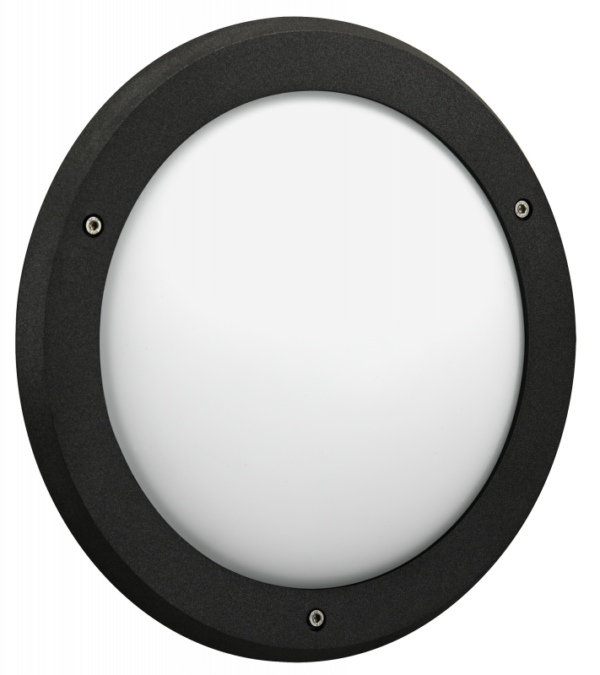

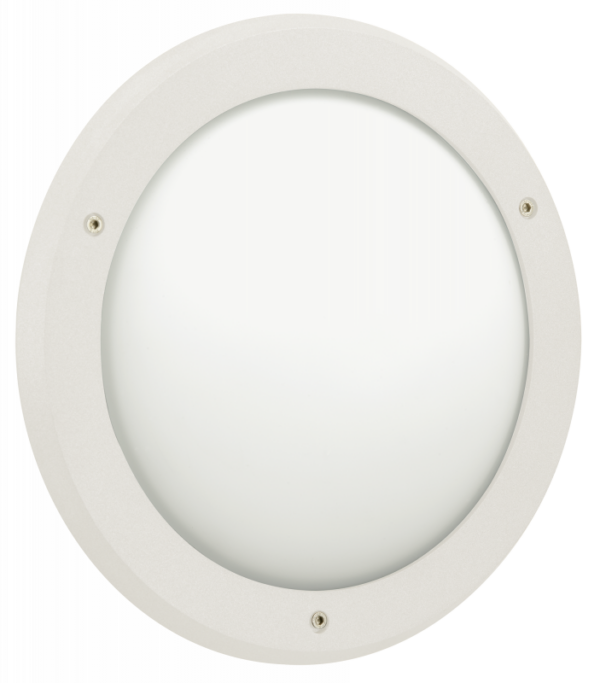

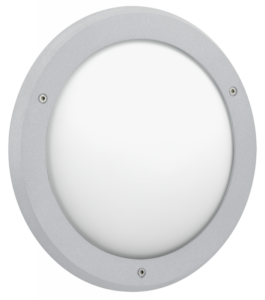

Wall and ceiling light

type ..6409

There is a successor for this product, which you will find listed below.

266,30306,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
880 lm
Colour temperature
3000 K
Material cover
Glass opal
Weight N/A
Suitable for surface mounting

Yes

Suitable for number of lamps

1

Nominal voltage

230 V

With control gear

No, Yes

Type of control gear

LED operating device voltage-controlled

Voltage type

AC

Suitable for ceiling mounting

Yes

Dimming depending on control gear

Yes

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP44

Protection class

I

Dimming phase cut-off

Yes

Unified Glare Ratio (UGR)

1

Length

80 mm

Colour of light

White

Colour rendering index CRI

80-89

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Mounting Type

Decke, Wand

Max. system power

8 W

Light output

1-seitig

Exchangeable control gear

No, Yes

Photobiological safety according to EN 62471

RG1

Max. number of luminaires per miniature circuit breaker B16

20

Outer diameter

315 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Surface protection housing

Lacquered

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Stroboscope effect value SVM

0.4

Suitable for wall mounting

Yes

Flickering value Pst LM

1

Type of wiring

Ending

Colour consistency (McAdam ellipse)

SDCM3

Power factor

0.9

Max. number of luminaires per miniature circuit breaker C16

30

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 38 KB

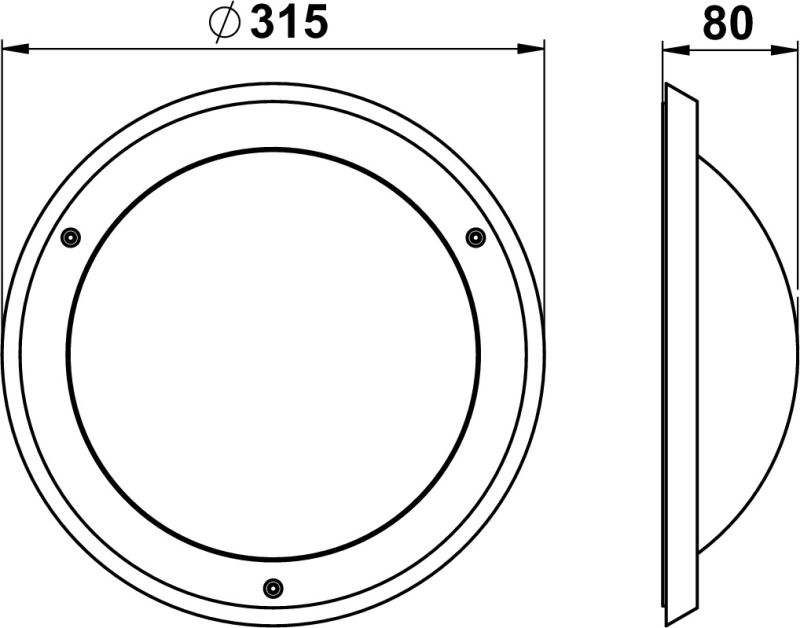

Dimensioned drawing
PDF | 108 KB
Light distribution curve - Eulumdat/LDT
LDT | 894 B
Offertext
For: 626409
TXT | 212 B
Offertext
For: 666409
TXT | 207 B
Offertext
For: 686409
TXT | 207 B
Offertext
For: 696409
TXT | 184 B
Full catalog 21 / 22
PDF | 39 MB
Successor
626419 - Wall and ceiling light type ..6419, Anthracite
Für: 626409
show
666419 - Wall and ceiling light type ..6419, Black
Für: 666409
show
686419 - Wall and ceiling light type ..6419, White
Für: 686409
show
696419 - Wall and ceiling light type ..6419, Silver
Für: 696409
show
Spare parts
90210305 - G 305, glass round, opal-etched matt show
