Article number 662106

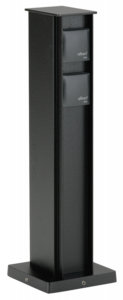

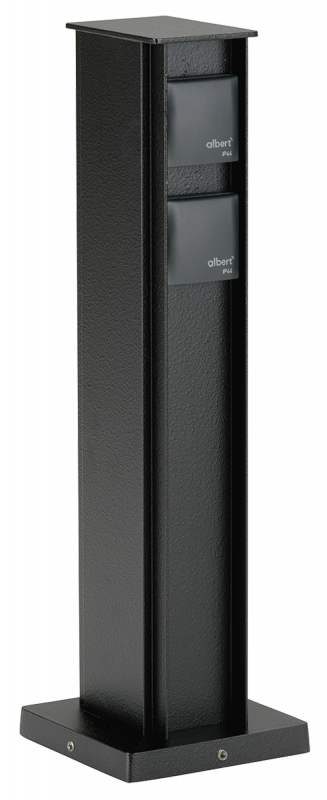

Socket column

type ..2106

256,00

Specifications

Albert socket column 662106 made of cast aluminium and aluminium profile, with 4 protective contact sockets16 A / 250 Volt. With connection terminals 4 x 4 qmm for mains connection, ready for connection with mounting plate for screwing onto a foundation or onto the ground mounting base type no. 690010.colour: black protection class IP 44 – protection class : 150 x 500 mm

Colour
Black
Weight 2,10 kg
Number of installation boxes

0

Suitable for degree of protection (IP)

IP44

Depth

120 mm

Height

500 mm

Width

80 mm

Surface finishing

Matt

Assembly

Bestückt

Number of socket outlets

4

Surface protection

Lacquered

Material quality

Aluminium

Material

Metal

RAL-number (similar)

9005

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 39 KB

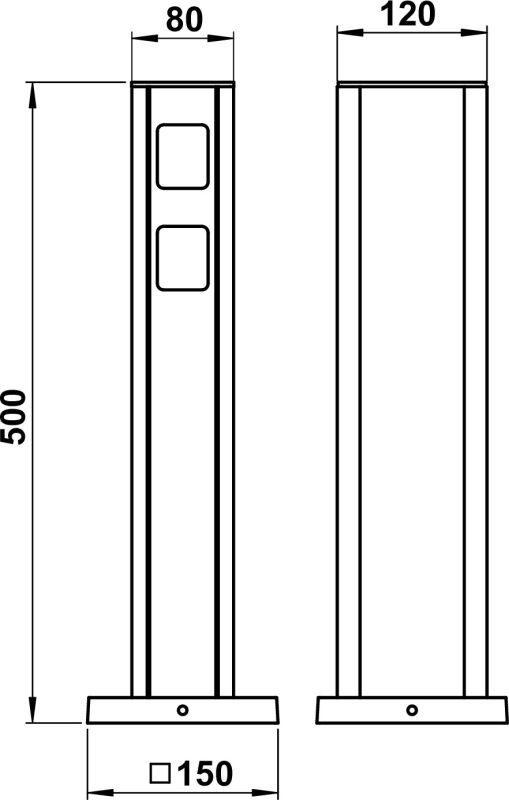

Dimensioned drawing
PDF | 18 KB
Full catalog 21 / 22
PDF | 39 MB
Accessories
690010 - Earth mounting base type ..0010 show
