Article number 662105

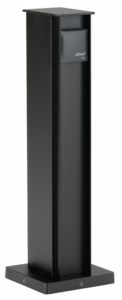

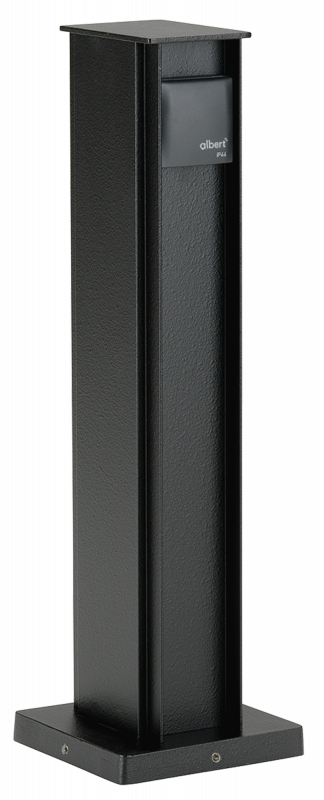

Socket column

type ..2105

204,50

Specifications

Albert socket column 662105 made of cast aluminium and aluminium profile, with 2 protective contact sockets16 A / 250 Volt. With connection terminals 4 x 4 qmm for mains connection, ready for connection with mounting plate for screwing onto a foundation or onto the ground mounting base type no. 690010.colour: black protection class IP 44 – protection class : 150 x 500 mm

Colour
Black
Weight 2,00 kg
Number of socket outlets

2

RAL-number (similar)

9005

Material

Metal

Material quality

Aluminium

Surface protection

Lacquered

Assembly

Bestückt

Number of installation boxes

0

Surface finishing

Matt

Width

80 mm

Height

500 mm

Depth

120 mm

Suitable for degree of protection (IP)

IP44

Shape

Eckig

Documents and files
Assembly instruction
PDF | 38.88 KB

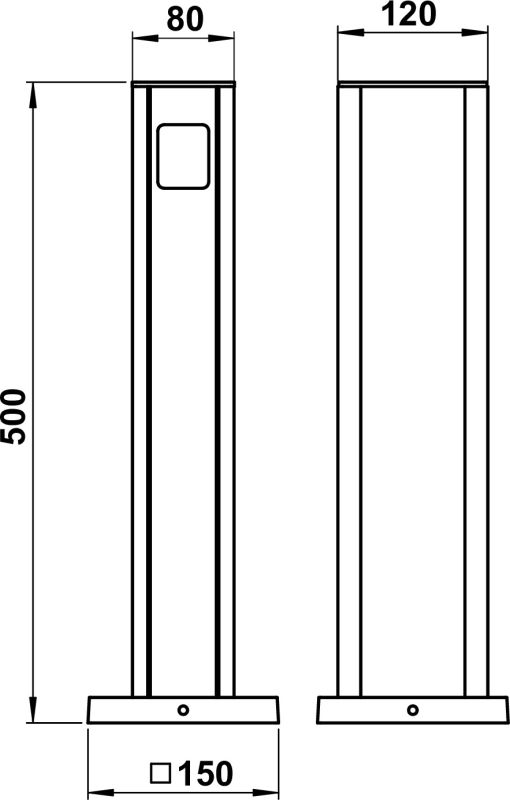

Dimensioned drawing
PDF | 17.72 KB
Full catalog 21 / 22
PDF | 38.74 MB
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight 2,00 kg
Number of socket outlets

2

RAL-number (similar)

9005

Material

Metal

Material quality

Aluminium

Surface protection

Lacquered

Assembly

Bestückt

Number of installation boxes

0

Surface finishing

Matt

Width

80 mm

Height

500 mm

Depth

120 mm

Suitable for degree of protection (IP)

IP44

Shape

Eckig
