Article number 626439

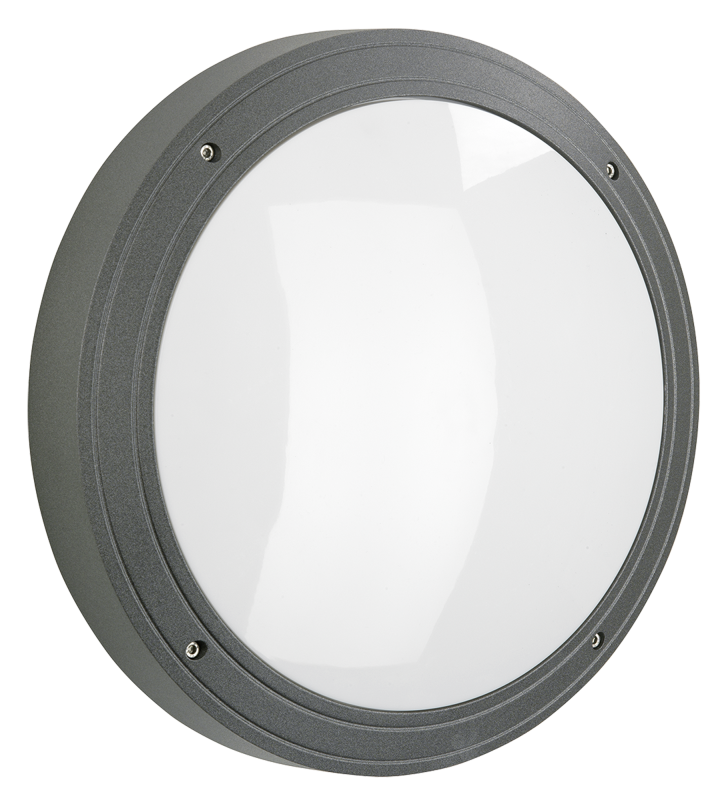

Wall and ceiling luminaire, with HF presence detector

type ..6439

501,70

Description

Colour: anthracite, 1 x LED 13 W, 1500 lm, aluminium casting, light colour warm white, 3000 K, acrylic glass opal

Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP65 Product-Icon Luminaire has IP 65 protection.
Luminaire has IP 65 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Impact resistant luminaire cover Product-Icon The luminaire cover is impact resistant IK 10.
The luminaire cover is impact resistant IK 10.
Material housing
Aluminium
Colour housing
Anthracite
With movement sensor
Yes
With HF presence detector
Yes
With light sensor
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
22 W
Rated luminous flux according to IEC 62722-2-1
2500 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

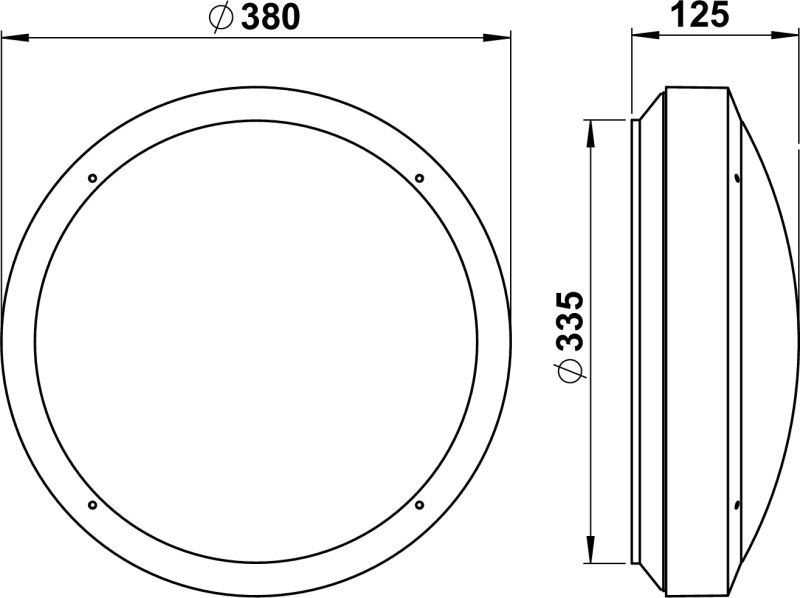

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90270418 - G 418, plexiglass opal show

Additional information

Weight 4,60 kg
Lamp type

LED exchangeable

With light source

Yes

Height/depth

125 mm

Height

< 700 mm

Colour housing

Anthracite

Suitable for ceiling mounting

Yes

Material cover

Plastic, opal

Voltage type

AC

With light sensor

Yes

Dimming depending on control gear

Yes

Material housing

Aluminium

Outer diameter

380 mm

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Protection class

I

Suitable for number of lamps

1

Power factor

0.9

Suitable for surface mounting

Yes

Number of poles

3

Colour rendering index CRI

80-89

With control gear

Yes

Type of wiring

Suitable for through wiring

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Max. system power

22 W

Flickering value Pst LM

1

Suitable for lamp power

22 W

Energy efficiency class of the provided exchangeable built-in lamp

E

Colour temperature

3000 K

Degree of protection (IP)

IP65

Impact strength

IK10

Colour consistency (McAdam ellipse)

SDCM3

Exchangeable control gear

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Light output

Direct

With movement sensor

Yes

Mounting Type

Decke, Wand

Light output

1-seitig

Surface protection housing

Lacquered

No dim function

Yes

Stroboscope effect value SVM

0.4

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Rated luminous flux according to IEC 62722-2-1

2500 lm

Coverage

360 °

Max. number of luminaires per miniature circuit breaker C16

30

Colour of light

White

Photobiological safety according to EN 62471

RG1

Suitable for wall mounting

Yes

Light sharing

Symmetric

Max. number of luminaires per miniature circuit breaker B16

20

Beam angle

Open beam/diffuse

With HF presence detector

Yes

Unified Glare Ratio (UGR)

1

Shape

Eckig
