Article number Select a color, please

Spherical top light

type ..0850

232,80235,00

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 100 W
Material cover
Plastic, opal
Suitable for spigot size
60 mm
Recommendations

This product is suitable for light poles with a pole top end diameter of 60mm.

Documents and files
Assembly instruction

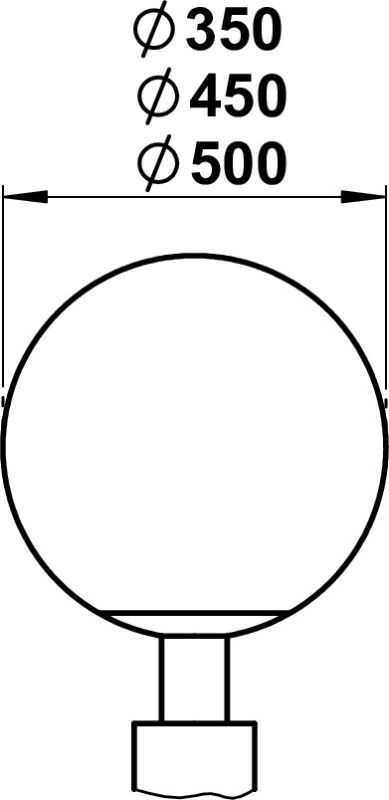

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 660850
Offertext
For: 680850
Full catalog 21 / 22
Spare parts
90260074 - G 74, sphere, opal, d = 350 mm PE show
Accessories
661015 - Pole attachment 2-fold type ..1015
Für: 660850
show
661016 - Pole attachment 3-fold type ..1016
Für: 660850
show
661017 - Pole attachment 4-fold type ..1017
Für: 660850
show
681015 - Pole attachment 2-fold type ..1015
Für: 680850
show
681016 - Pole attachment 3-fold type ..1016
Für: 680850
show
681017 - Pole attachment 4-fold type ..1017
Für: 680850
show
690012 - Aluminium mast type ..0012 show
690013 - Aluminium mast type ..0013 show
690014 - Aluminium mast type ..0014
Für: 680850
show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Mounting Type

Post top

Material cover

Plastic, opal

Voltage type

AC

Diameter

350 mm

Conductor cross section

2.5 mm²

Type of control gear

Not required

Nominal voltage

230 V

Surface protection

Lacquered

Max. system power

100 W

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Lamp type

HV halogen lamp

Suitable for number of lamps

1

Lamp holder

E27

Material housing

Aluminium

Colour housing

Black, White

Power factor

1

Height

< 700 mm

Cable length

0 m

Suitable for lamp power

1 – 100 W

Shape

Eckig

Type of wiring

Suitable for through wiring

Light type

Mastaufsatzleuchte

Height/depth

350 mm

Connection type

Screwed terminal

Number of poles

3

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

No dim function

Yes

Protection class

I

Suitable for spigot size

60 mm
